Fan Coil Unit

The fan coil is composed of a fan, a coil and a filter. As the end device of the air conditioning system, it is distributed in various air-conditioned rooms and can treat the air independently. The equipment is easy to install and maintain, and the system is flexible to increase and match.

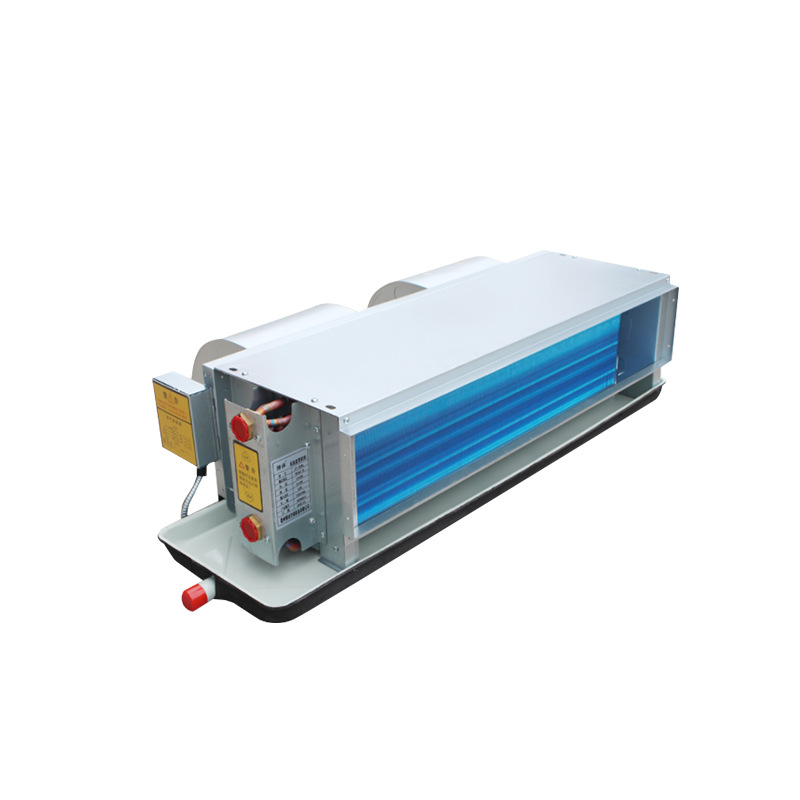

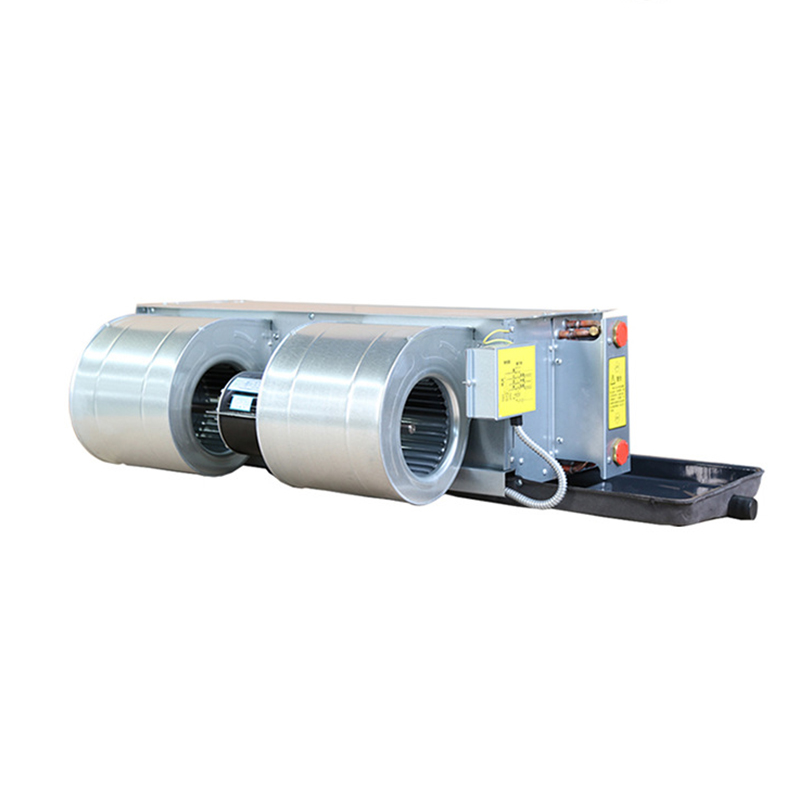

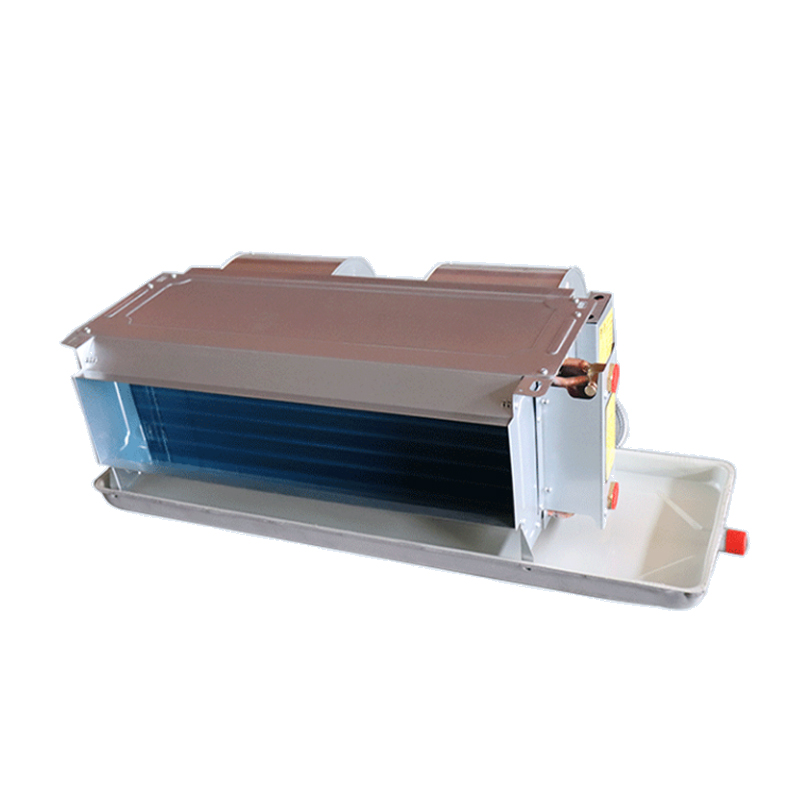

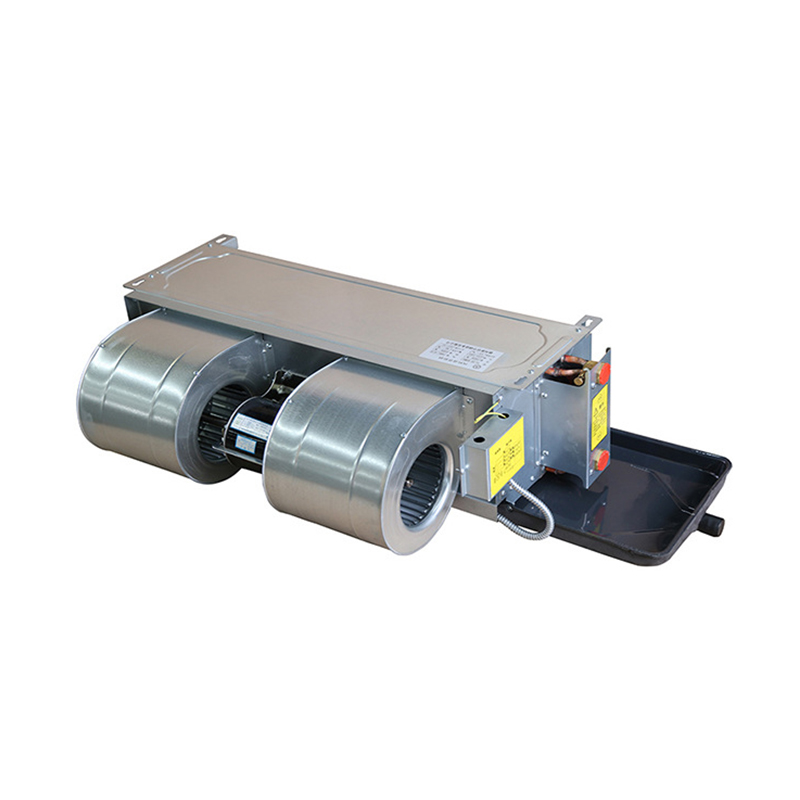

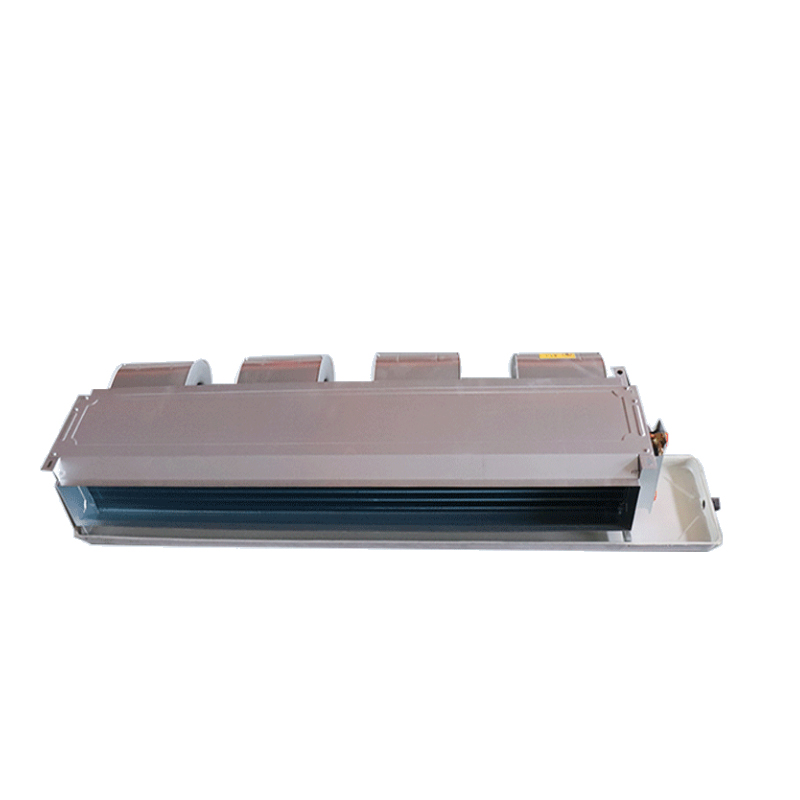

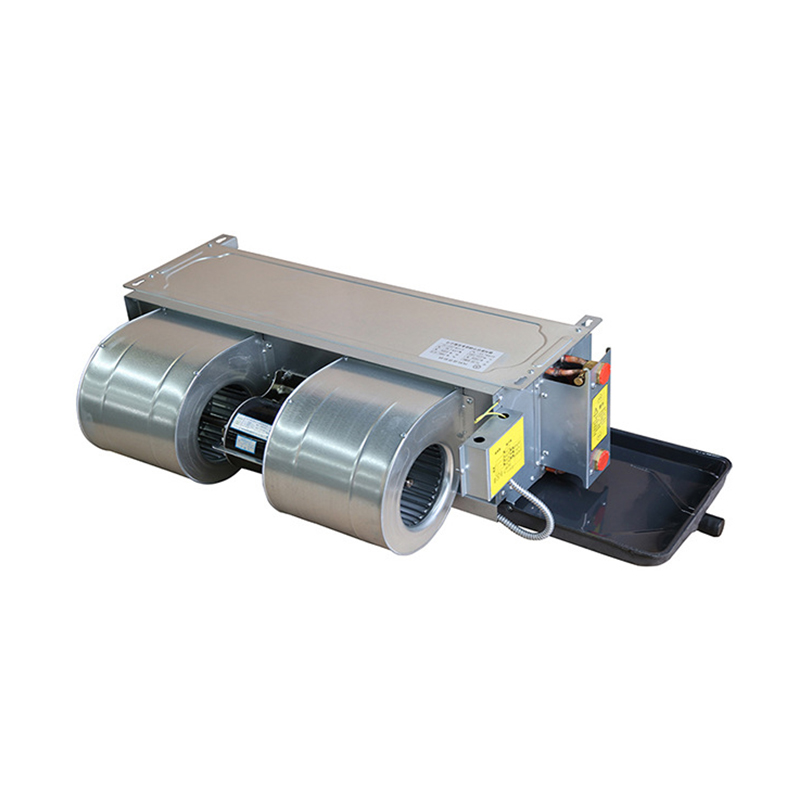

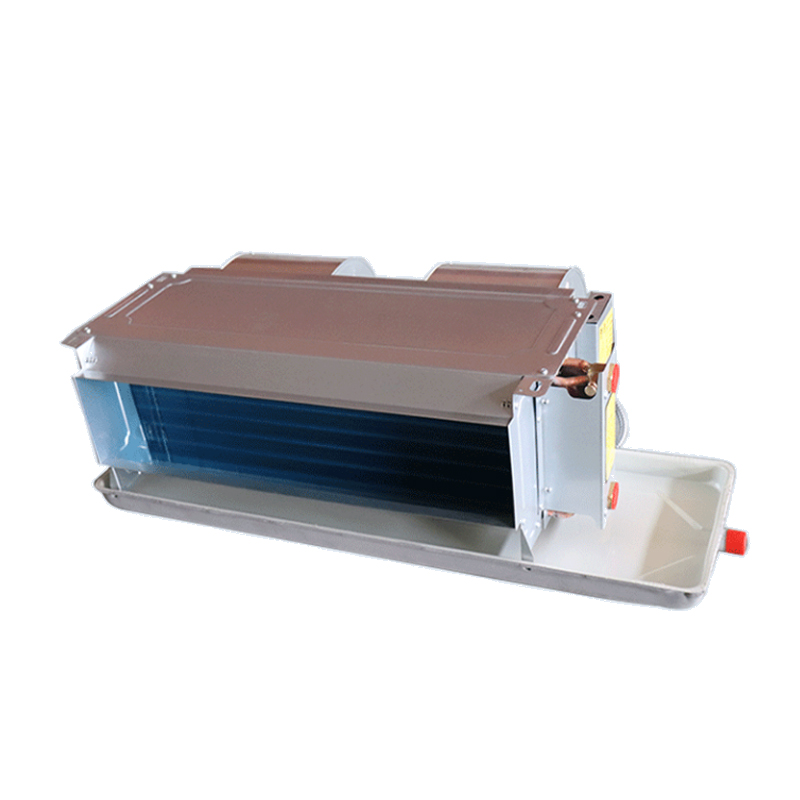

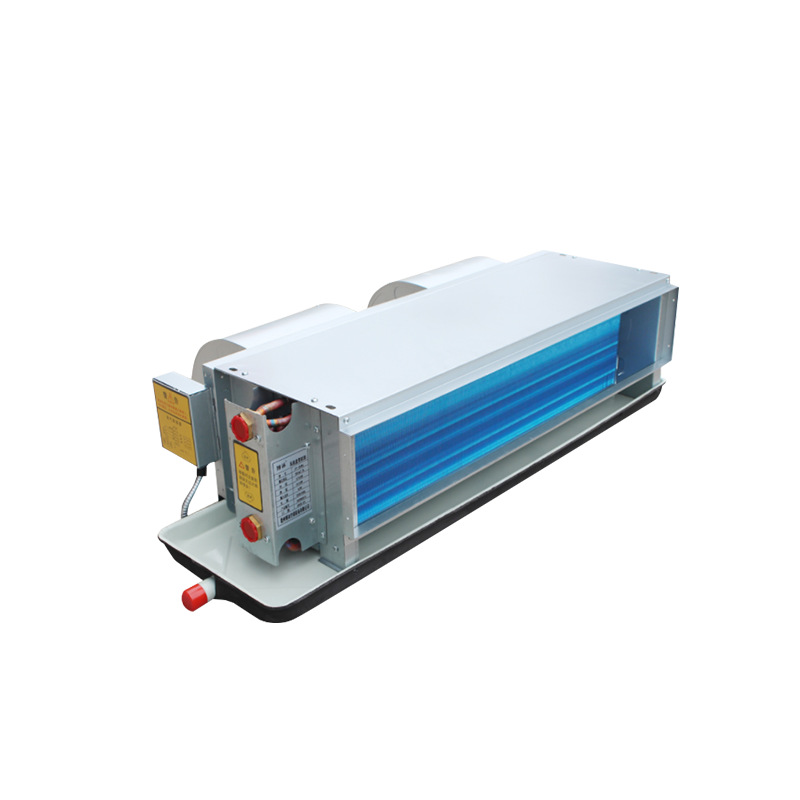

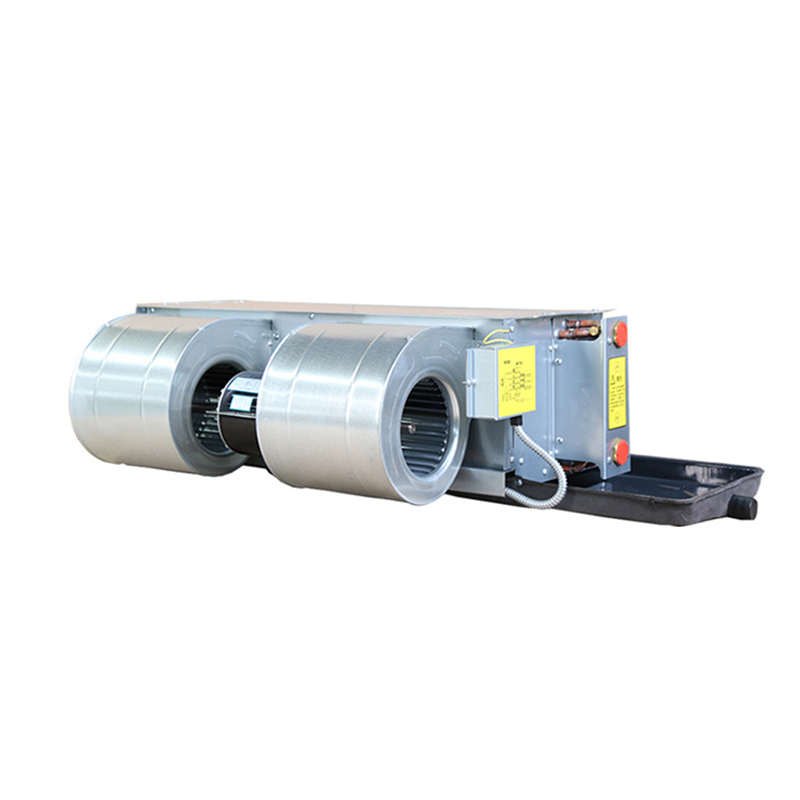

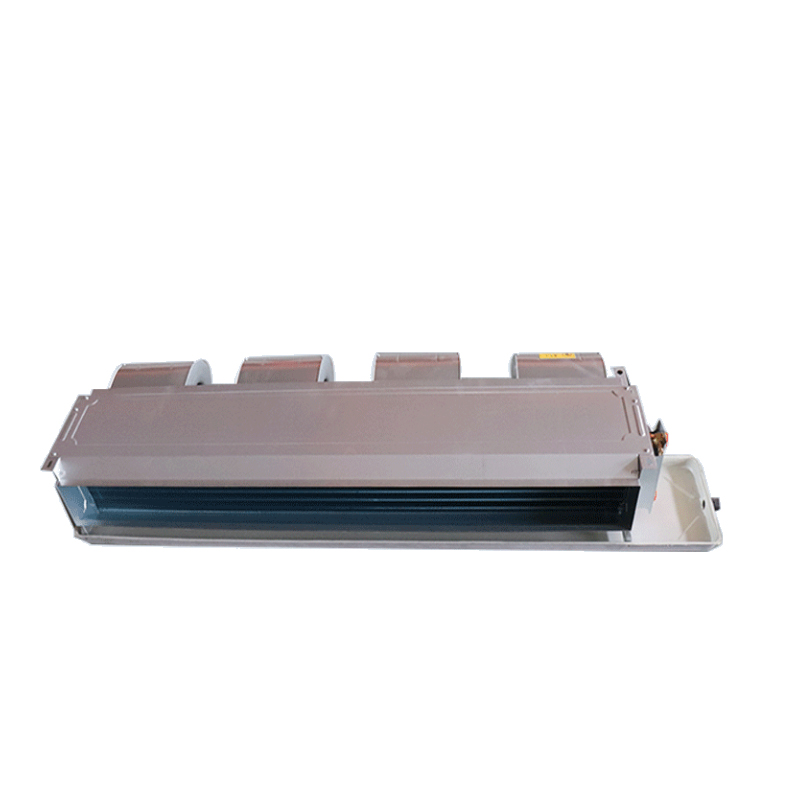

Type: FP Series Horizontal Type

Air Flow: 300-2400m³/h

Rated Cooling Capacity: 1800-12600W

Rated Heat Supply: 2700-18900W

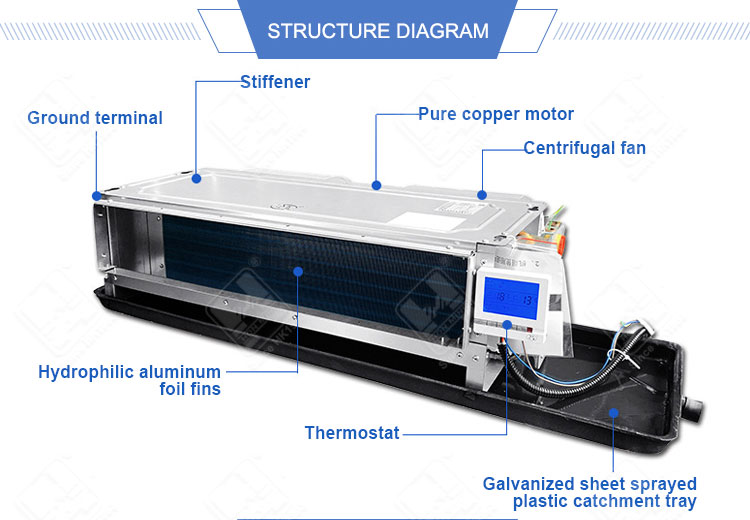

Description

Brushless DC motor fan coil is a high-tech energy-saving product, which is quiet, comfortable, energy-saving, environmental protection, especially suitable for high-end hotels.

Brushless DC motor is a typical mechatronics product.which is composed of motor host and driver.The brushless DC motor system for fan coil unit is composed of power module, control module, drive module and brushless DC motor. The brushless DC motor has excellent wide range speed regulation characteristics.One product can meet the requirements of many different types of fan coil unit.

Using brushless DC motor on the fan coil can easily realize digital control. At the same time, the brushless DC motor system meets the national standards of electromagnetic compatibility and power factor, and adapts to the current international development trend of energy saving and environmental protection.

There are various forms such as cassette four-outlet wind, horizontal concealed installation, horizontal exposed installation, vertical concealed installation, vertical exposed installation and wall-mounted, etc., which can be freely matched with various decoration styles such as hotel rooms and offices.

Technical Parameters

Cooling capacity as following.
1)Water temperature: 7 C( inlet )/12C ( outlet) or customized
2)Air entering condition: 27 C DB/19.5C WB or customized
Heating Capacity as following(with same water flow rate as cooling cycle):
1)water temperature: 60C( inlet) or customized
2)Air entering condition: 21C DB or customized
The air volume is tested under entering air condition of 20 C DB and dry coil condition.
The sound pressure level is based on 11.5d B(A)anechoic room background noise.
The manufacturer reserves the rights to make changes to the above specification without notice.

Technical Performance ofLow, High Static Pressure, Ultra-high Static Pressure Fan-Coil Unit
Model			FP-200	FP-300	FP-400	FP-500	FP-600	FP-800	FP-1000	FP-1200	FP-1400
Rated air volume (m³/h)		H	340	510	680	850	1020	1360	1700	2040	2380
		M	255	383	510	638	765	1020	1275	1530	1785
		L	170	255	340	425	510	680	850	1020	1190
Cooling capacity (W)	High speed	Full heat	1888	2795	3709	4625	5518	7246	9038	10878	12618
	High speed	Sonsbk hont	1310	1926	2528	3149	3722	4863	6075	7242	8389
	Medium speed	Full heat	1661	2432	3251	4030	4785	6182	7739	9158	10716
	Medium speed	Sensbk heat	1099	1603	2133	2629	3148	4072	5082	6002	7040
	Low speed	Full heat	1321	1933	2568	3182	3778	4900	6136	7281	8472
	Low speed	Sensbk heat	839	1231	1623	2005	2379	3120	3895	4609	5408
Heat (W)		High speed	3143	4556	5997	7378	8707	11410	14254	16789	19476
		Mlechum spood	2567	3732	4915	6054	7154	9395	11731	13845	16064
		Low speed	1879	2746	3622	4471	5295	6975	8713	10296	11953
Noise dB(A)	Low static pressure	12Pa	37	39	41	43	45	46	48	49	50
	High static pressure	30Pa	40	42	44	46	47	48	50	52	54
	High static pressure	50Pa	42	44	46	47	49	50	52	54	56
Water volume (L/h)			325	481	638	796	949	1246	1555	1871	2170
Cold water resistance (KPa)			2.36	5.51	10.43	17.06	25.25	8.53	13.41	20.72	29.86
Hot water resistance (KPa)			1.79	4.19	7.93	10.07	19.2	6.49	10.2	15.75	22.7
Motor	Type		High-precision bearings without refueling, three speed capacitive, B-class insulation
	Power supply		220V 1ph 50Hz
	Number of motors		1	1	1	1	1	2	2	2	2
	Low statc pressure input power (W)		37	52	62	76	96	134	152	189	228
	High static pressure input powor (W)		44	59	72	87	108	156	174	212	253
	Uitra-high static pres- sure input power (W)		49	66	84	100	118	174	210	250	300
Fan	Type		Double-inlet multi-leaf low-noise centrifugal fan
	Quantity		1	2	2	2	2	3	4	4	4
	Utra-high stabc pressure quantity		1	2	2	2	2	3	4	4	4
Surface cooler	Type		Copper tube with corrugated aluminum fins, with manual air release valve
	Row depth, film spacing		3 rows, 2.33mm pitch
	Take over size		The diameter of the inlet pipe, outlet pipe and condensate pipe is 3/4″

Features

Speed regulation characteristicsWide speed rangeMulti-speed or stepless speed change can be adopted according to user needsUse in a wide voltage range and keep the speed stable
Multiple protection functions for motor and power supplySudden abnormal load protectionAbnormal working current protectionLocked-rotor protection with low energy consumptionMultifunctional electronic protection
Convenient interchangeabilityThe use of brushless motors does not need to change the structure and installation design of the existing fan coil system
Low vibration, low noiseUsing sinusoidal PWM control drive mode to reduce motor vibration and electromagnetic noise
Energy saving and high efficiencySignificantly improve the operating efficiency of the fan-coil unit, and the power consumption is only 10-20% of that of the ordinary fan-coil unit, which reduces the operating cost.
Intelligent control of thermostatThe following networking communication interfaces RS485.RS232.TCP/IP WIFI,ZIGBEE, etc.are optional.
