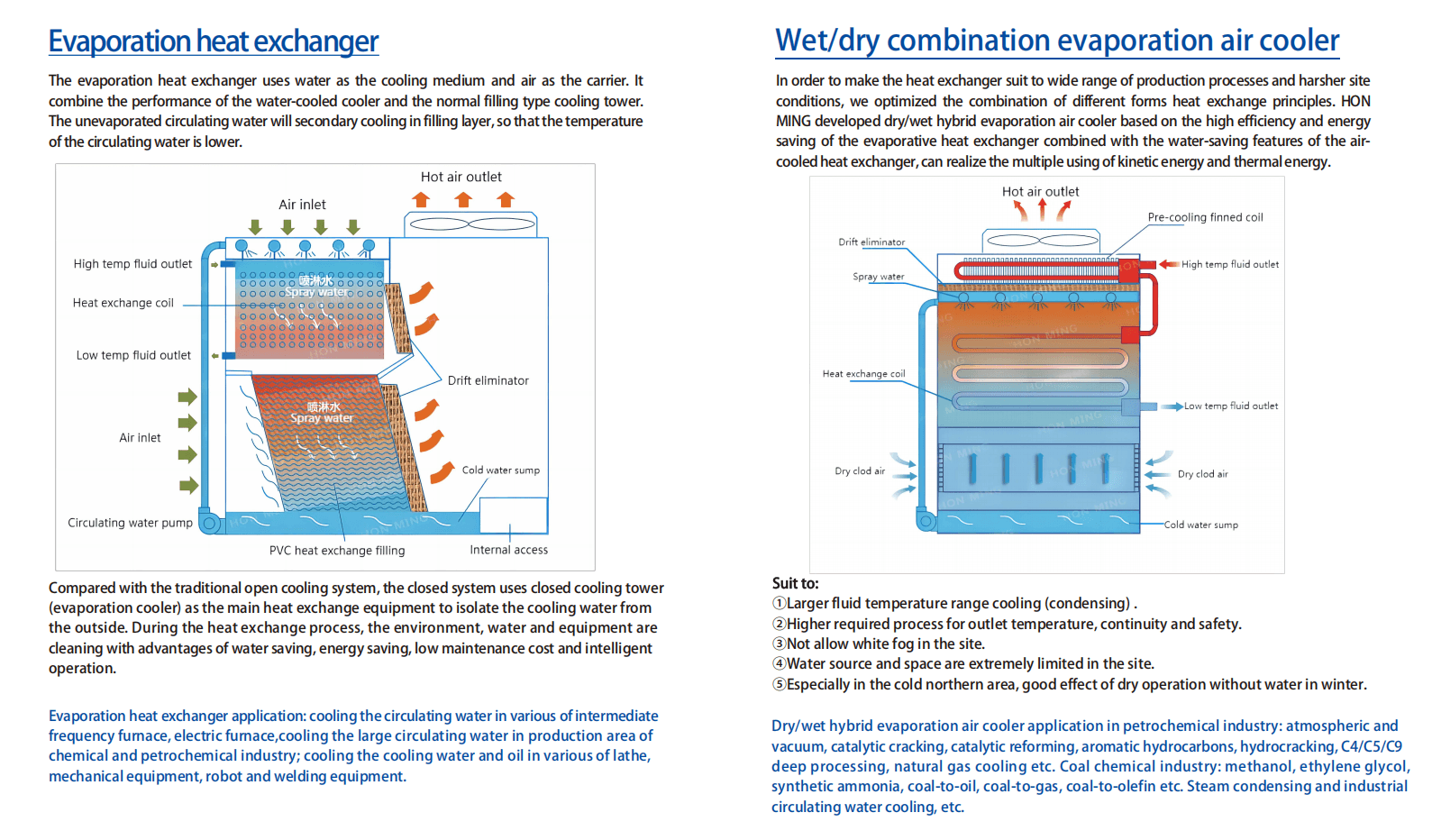

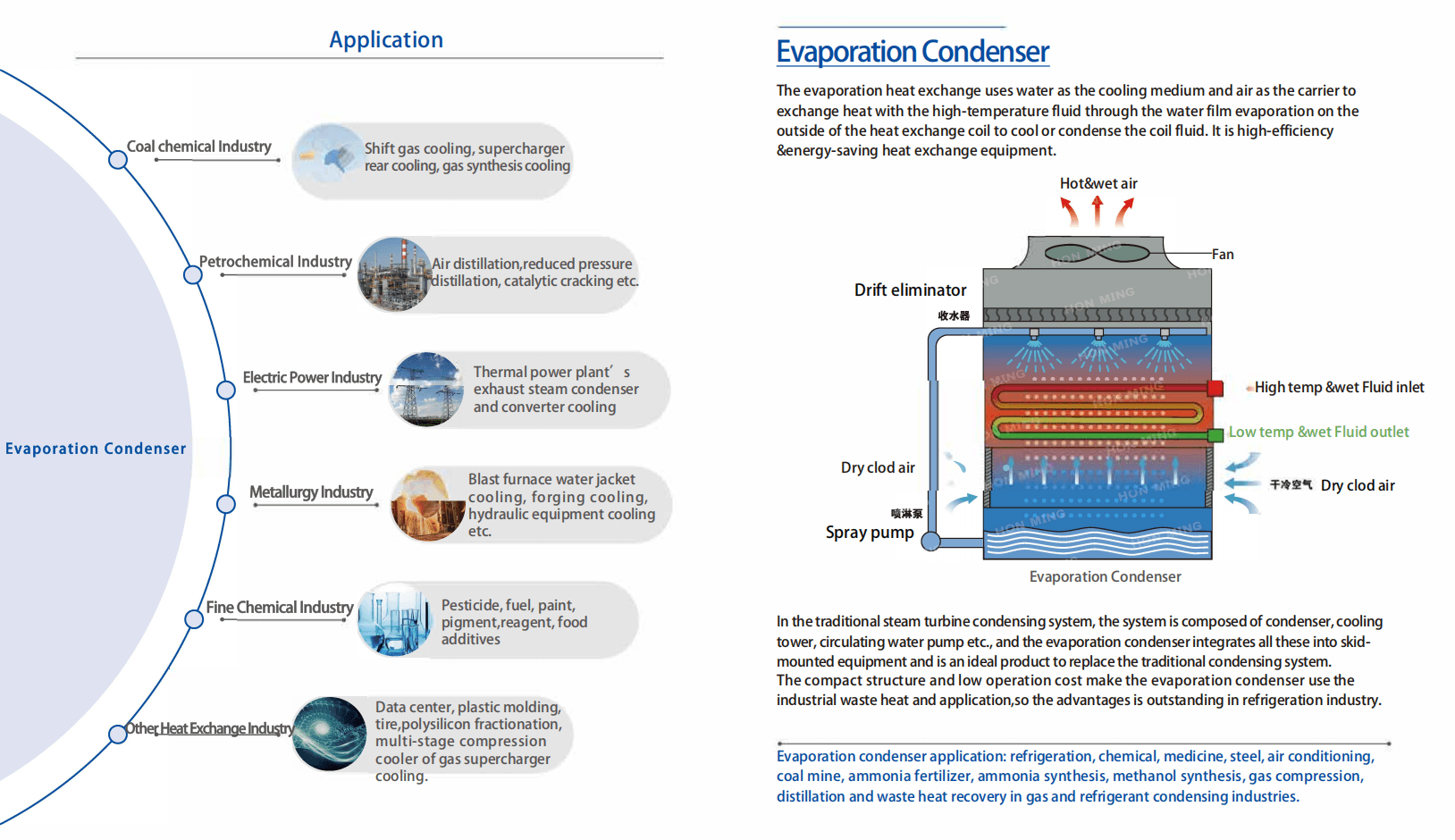

The evaporation heat exchange uses water as the cooling medium and air as the carrier to exchange heat with the high-temperature fluid through the water film evaporation on the outside of the heat exchange coil to cool or condense the coil fluid. It is high-efficiency & energy-saving heat exchange equipment.

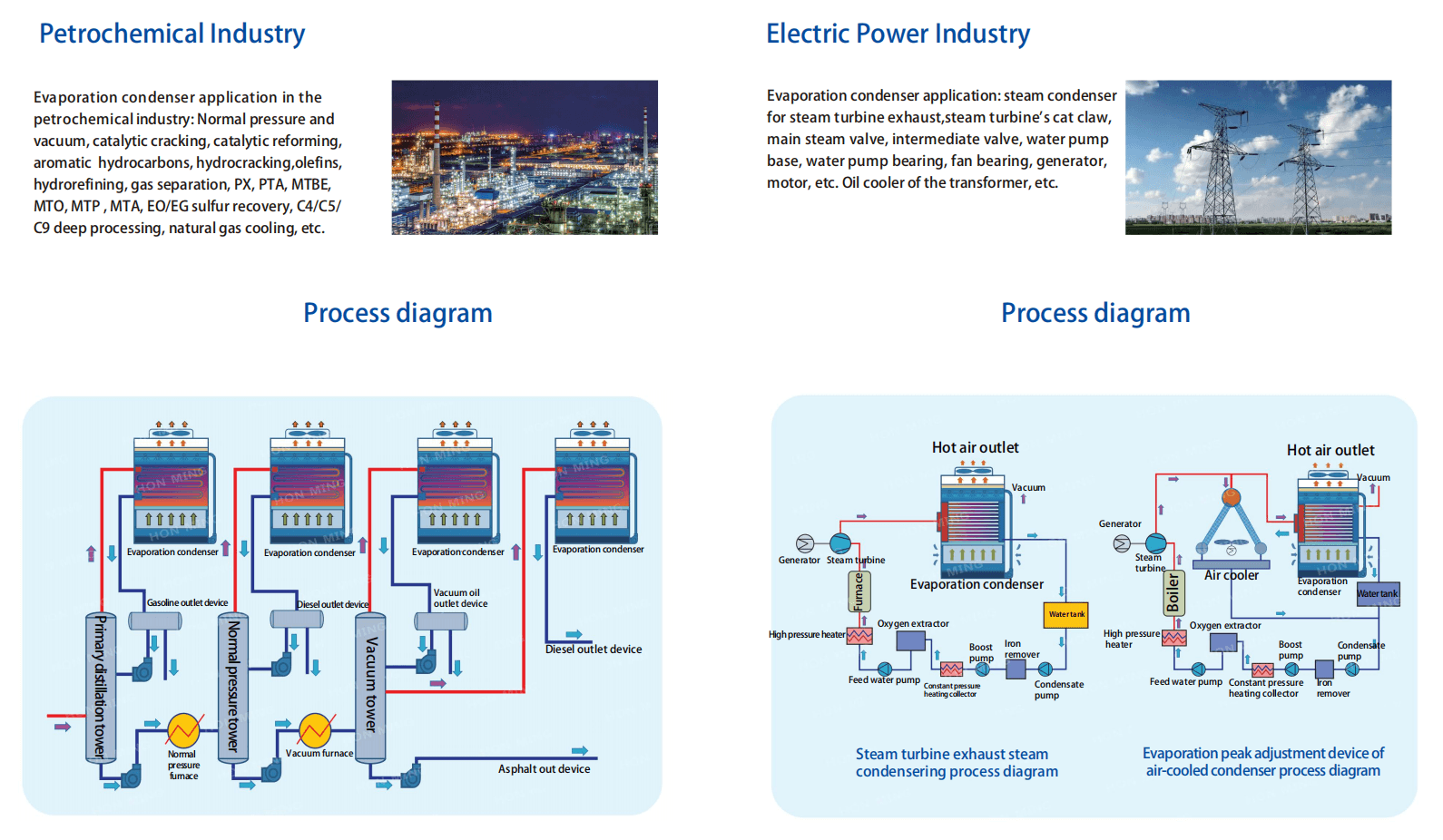

In the traditional steam turbine condensing system, the system is composed of condenser, cooling tower, circulating water pump etc., and the evaporation condenser integrates all these into skidmounted equipment and is an ideal product to replace the traditional condensing system.
The compact structure and low operation cost make the evaporation condenser use the industrial waste heat and application,so the advantages is outstanding in refrigeration industry.
HON MING dry and wet combined closed cooling tower, hybrid dry & wet operation, 30%-85% water saving, anti-plume, closed loop anti-scaling. Custom cooling capacity for industrial, HVAC, compressor cooling. Get quotation now.

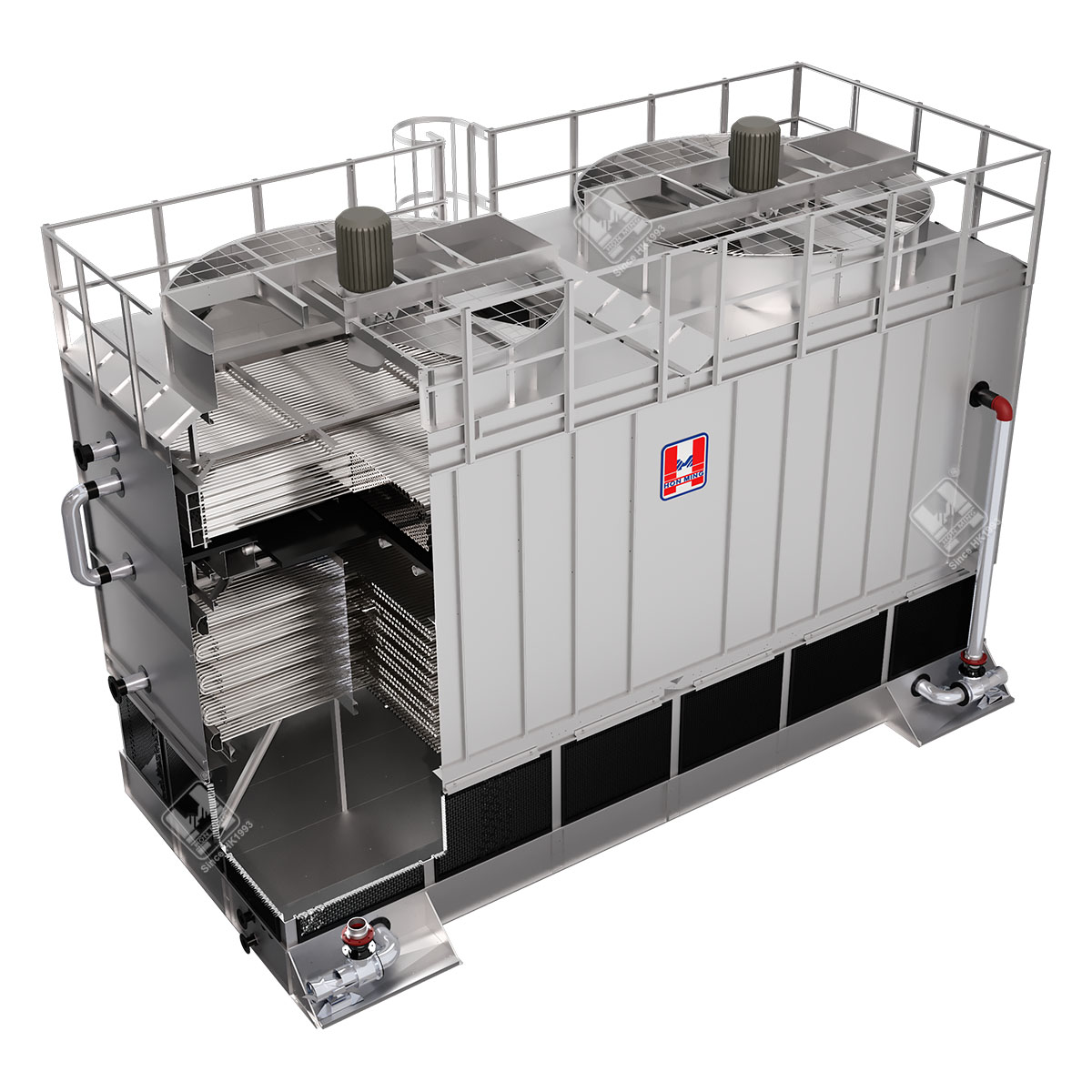

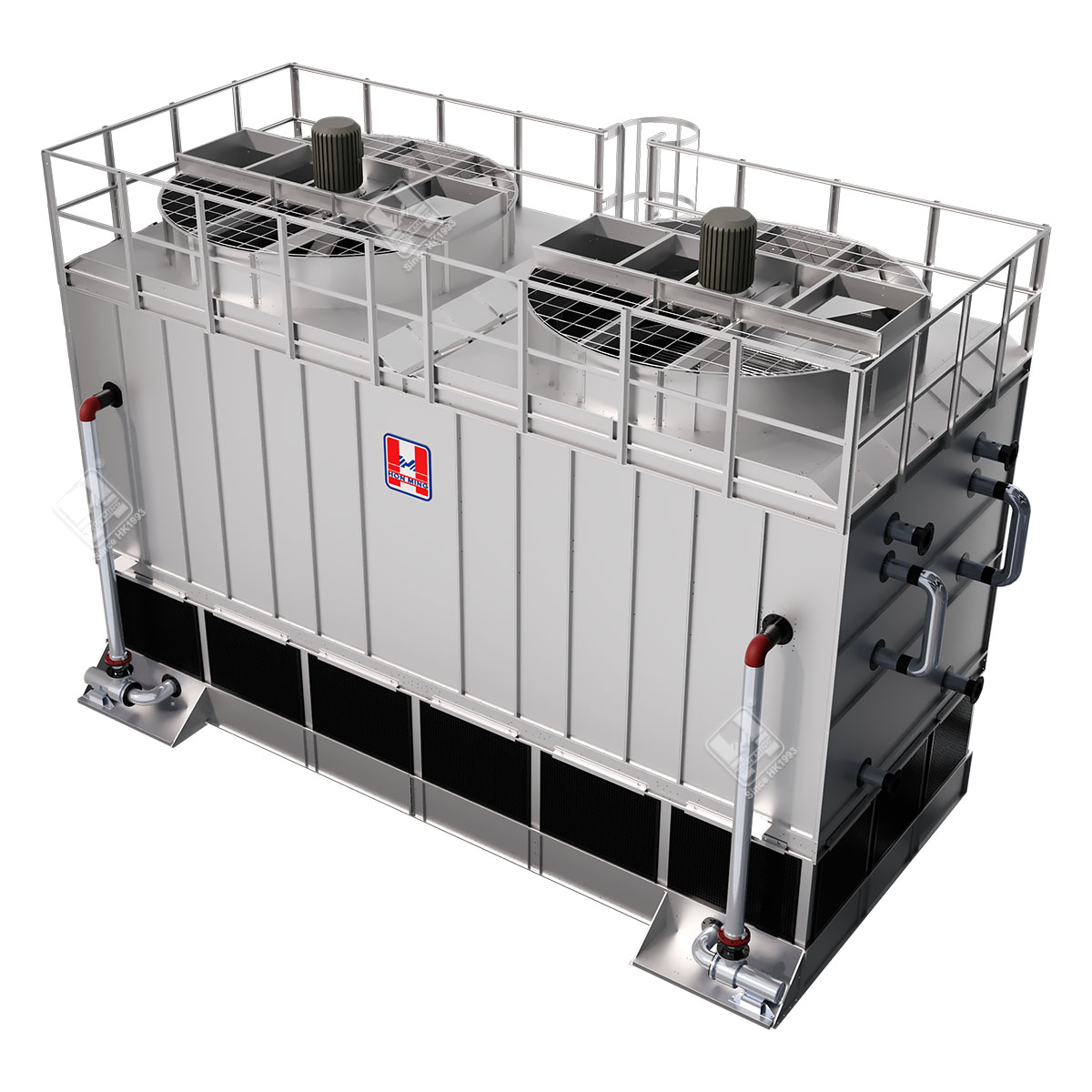

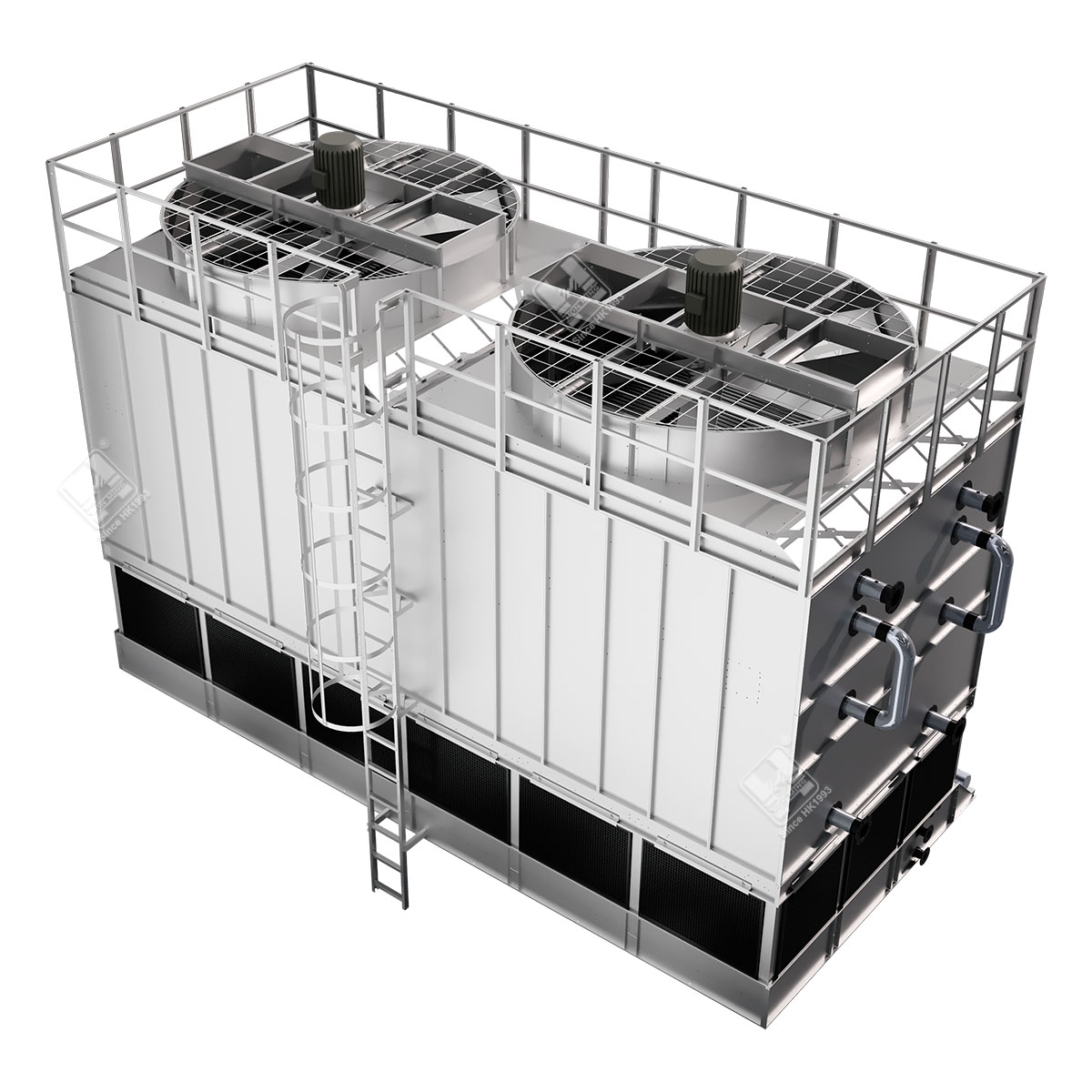

HON MING Dry and Wet Combined Closed Cooling Tower integrates dry finned tube air cooling and wet evaporative cooling into one compact unit. It supports 3 flexible operating modes: dry mode, wet mode and combined mode, automatically switching according to ambient temperature and process heat load. The medium circulates fully inside the coil without contact with outside air, keeping the fluid clean and preventing pipeline scaling. It is a water-saving, low-noise and anti-plume industrial cooling solution for water-shortage areas and cold regions.

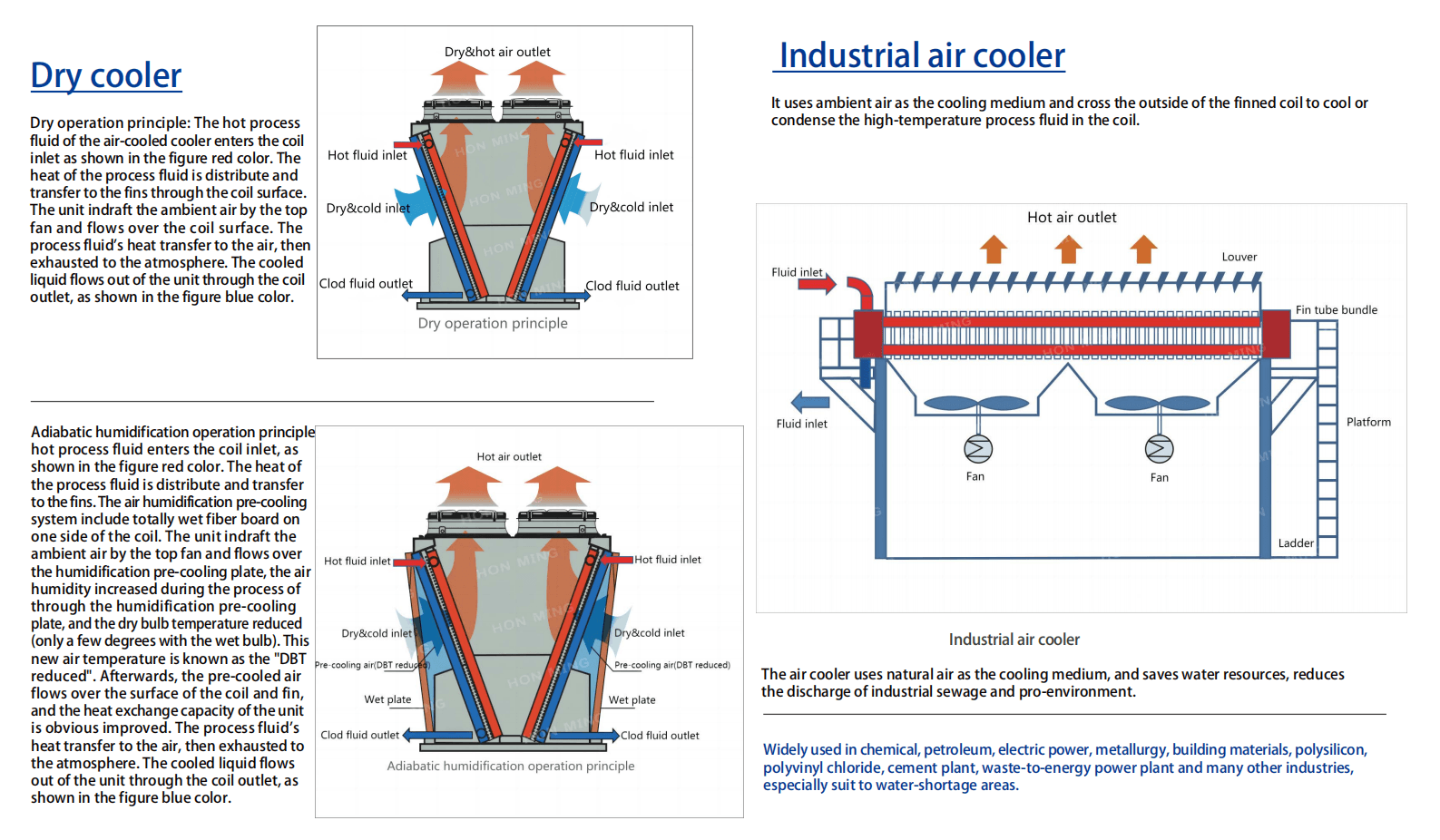

Hot working medium first passes through the dry finned coil for pre-cooling to remove sensible heat with zero water consumption. When extra cooling capacity is needed, the medium flows into the wet coil section. The spray system forms a water film on the coil surface; heat is taken away by water evaporation and air convection.
In low-temperature seasons, the spray pump stops, and the tower runs 100% dry mode, consuming no spray water and eliminating white plume completely. In hot summer, wet mode is activated to secure sufficient cooling capacity. Spring and autumn adopt combined mode to balance cooling performance and water saving.
✅ Massive Water Saving
Annual water saving rate 30%–85% vs conventional closed cooling towers. Dry mode uses no spray water, greatly cutting water & chemical treatment cost.
✅ Closed Circulation & Anti-scaling
Process liquid stays inside coils, isolated from air and dust. No scaling on process side, stable long-term operation.
✅ Plume Elimination
Dry pre-cooling reduces exhaust air humidity; zero visible white mist under dry operation, ideal for airport, road, factory boundary noise & sight-sensitive sites.
✅ Flexible Intelligent Operation
PLC automatic control for mode switch; fan & spray pump support frequency conversion, adapting to variable heat load.
✅ Durable Structure & Easy Maintenance
Shell with magnesium-aluminum-zinc coated plate for anti-corrosion. Stainless steel coil optional. Anti-clogging spray nozzles, convenient access for inspection.
✅ Wide Application Range
Suitable for high inlet temperature working conditions, stable performance under extreme climate.
