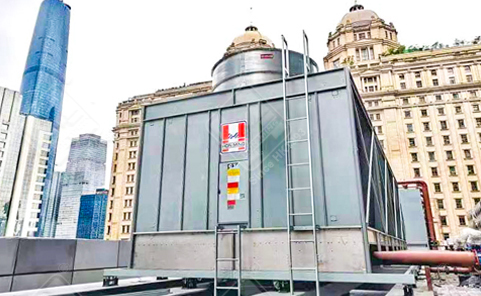

Galvanized Steel/Stainless Steel Square Cross Flow Cooling Tower

Because traditional FRP cooling tower products cause certain harm to the environment and humans during the production process, the selection of this series not only avoids this kind of harm, but also makes more contributions to environmental protection!

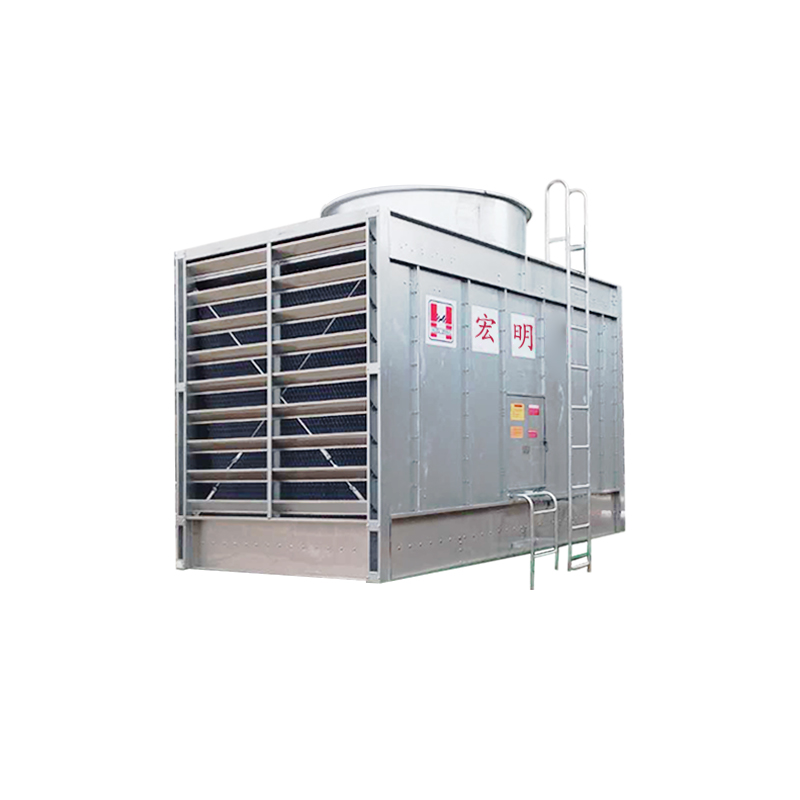

MK-D series galvanized steel square cross-flow cooling tower adopts Z725 high zinc layer steel structure, stainless steel water tray, ultra-quiet fan, imported brand transmission components, and virgin PVC heat exchange filler as standard configuration.

The MK-S stainless steel square cross-flow cooling tower is made of insulated 304 stainless steel plates, and the rest of the configuration is the same as that of the MK-D. The “safe” choice, a comfortable and “quiet” life.

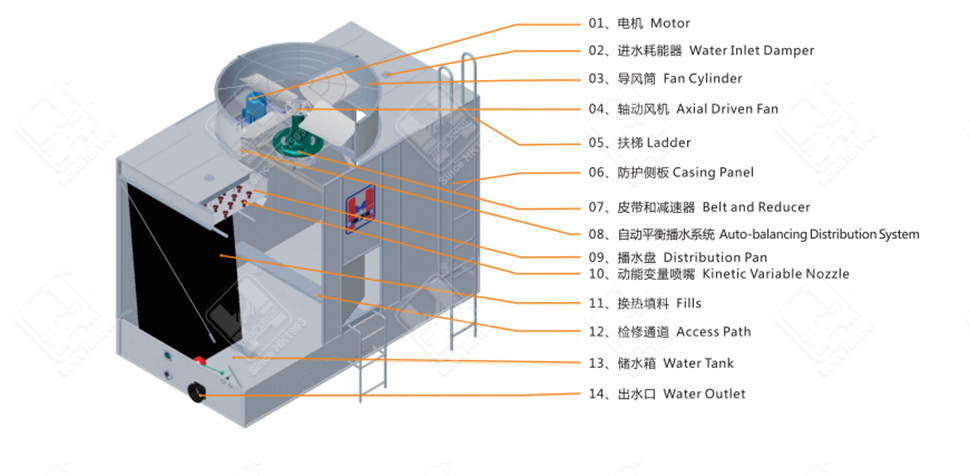

• High-efficiency axial fan

Large air flow rate; large wide blade; high air speed; silent operation;

Anti-corrosion; excellent stability; long service life.

• Water distribution system

Low pressure head gravity water distribution, large diameter without moving parts;

It can adapt to variable flow operation, Suit to high-efficiency computer room applications;

The hot water basin cover is easy to maintain the water distribution system and resists external pollution.

• Hing efficiency heat exchange fillings

Three-in-one:Water collector, Inlet shutters, and heat dissipation filling;

High-quality PVC material,B1 grade flame retardant material;

High efficient diversion pattern, suspended installation.

• Motor, transmission

Special motor for fully closed cooling tower;

Protection class: IP55, insulation class: F;

Adopt Japanese Samsung belt;

Optional: anti-vibration alarm device /global famous brand motor.

• Frame structure, casing material

Using Magnesium Aluminum galvanized Steel import from POSCO,Korean,higher than the industry standard;

Super anti-corrosion performance can compare to stainless steel;

Processed bending cut place can self-healing and repairing properties;

Available use Stainless steel material according to customer needs;

Ladder，protecting cage and tower top guardrail (optional).

MK series cooling tower is more suitable for the application of circulating water heat dissipation, including the natural cooling of air conditioning, refrigeration, heat storage system and the cooling of water in the condenser of these systems. And it is widely used in the industrial and manufacturing processes to disperse waste heat.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

※Specifications are subject to change without notice.

• Working fluid (water, oil or other liquid) flowing inside of the coils, which is en-wrapped by spray water on the outside. The heat water is transferred by coil and become the saturated vapor when meet the water and air.
• The top fan can exhaust the heat out of the tower. And water is collected by the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin when circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
• This style advantage is avoid scale formation on coil outside. And this cooling tower will especially handle high temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

• If the cooling tower is a natural inflow pool, the customer needs to increase the outlet diameter when ordering, and can also provide the sales representative with the relevant shape and layout when the water collecting tank is not needed.
• The cooling tower in the foundation dimension drawing will support the vertical weight of the inlet pipe shown only in the tower plane. All external pipeline loads, including the dead weight of riser and horizontal pipe, thrust and lateral load, must be supported independently. All pipes, supports and design are in the charge of others.
• Gas welding and electric welding are not allowed in the top of cooling tower. Pay attention to fire prevention.
• The cooling tower should be installed in a well ventilated place, and the air inlet of the cooling tower should keep a certain distance from the building to ensure that fresh air enters the tower, so as to avoid the backflow of hot and humid air discharged from the cooling tower affecting its thermal performance; The minimum allowable distance between the air inlet surface of the cooling tower and the building is related to the tower type and the number of assembled units. Please contact us for details.
• The cooling tower should not be installed in the place with hot and humid air and dust as far as possible; And it should be installed in an open field, so as to avoid noise expansion caused by sound reflection.
• The construction foundation and the edge of the foundation should reserve a safety channel of ≥ 1000mm. If no safety channel is reserved, the protective net should be reserved as the basic safety guarantee for maintenance personnel.
• The cooling tower should be far away from the fire during installation and use; When connecting the cooling water pipe, be careful to prevent the fire of welding.
