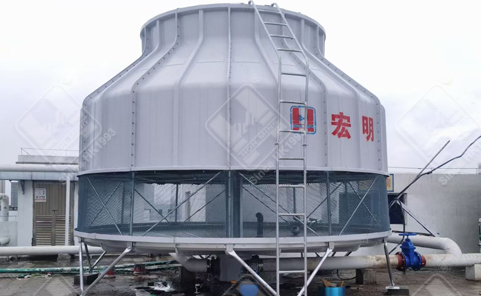

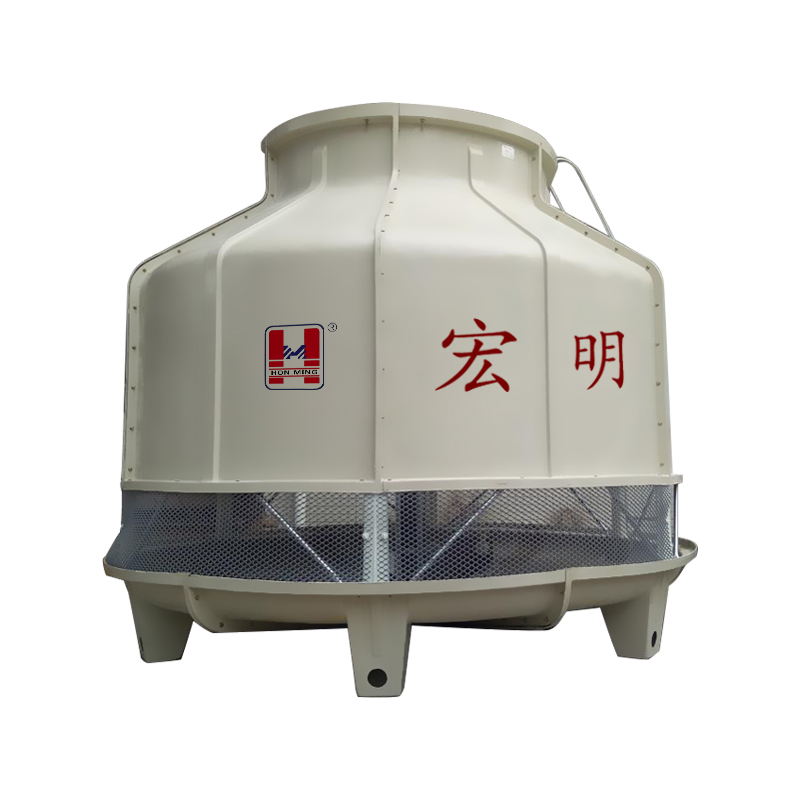

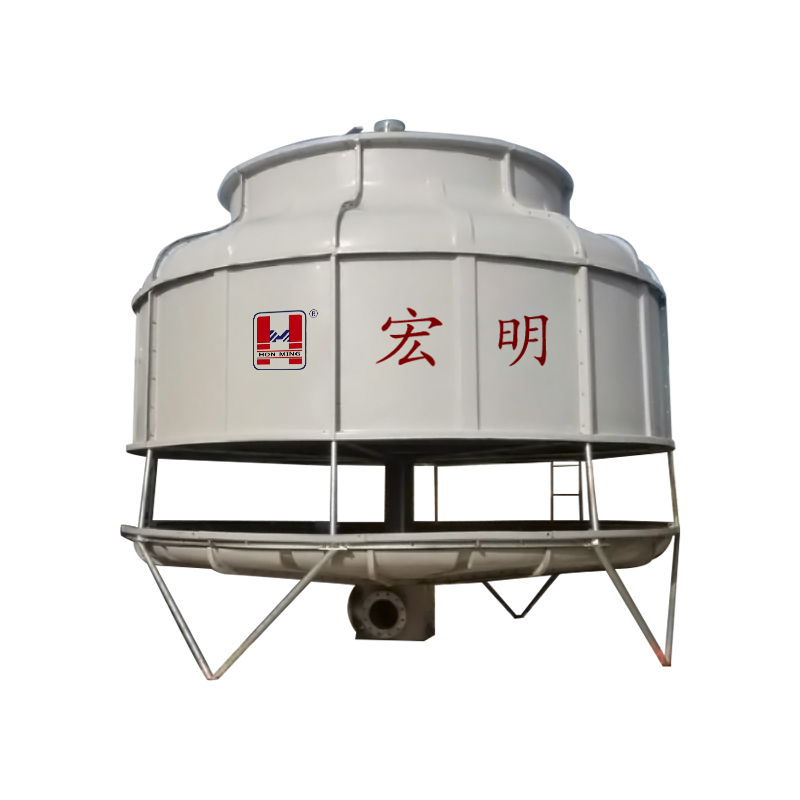

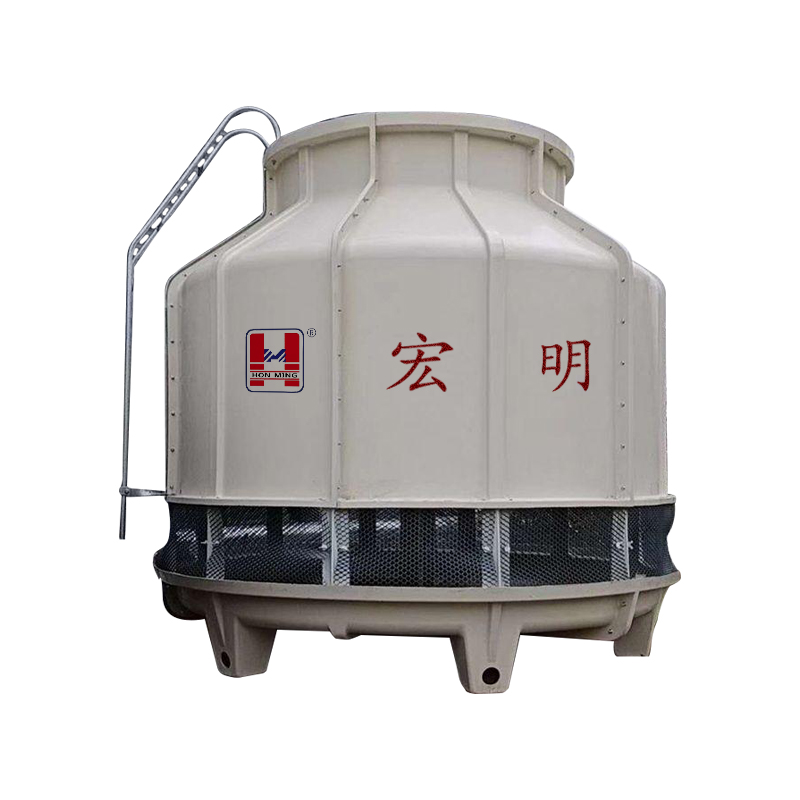

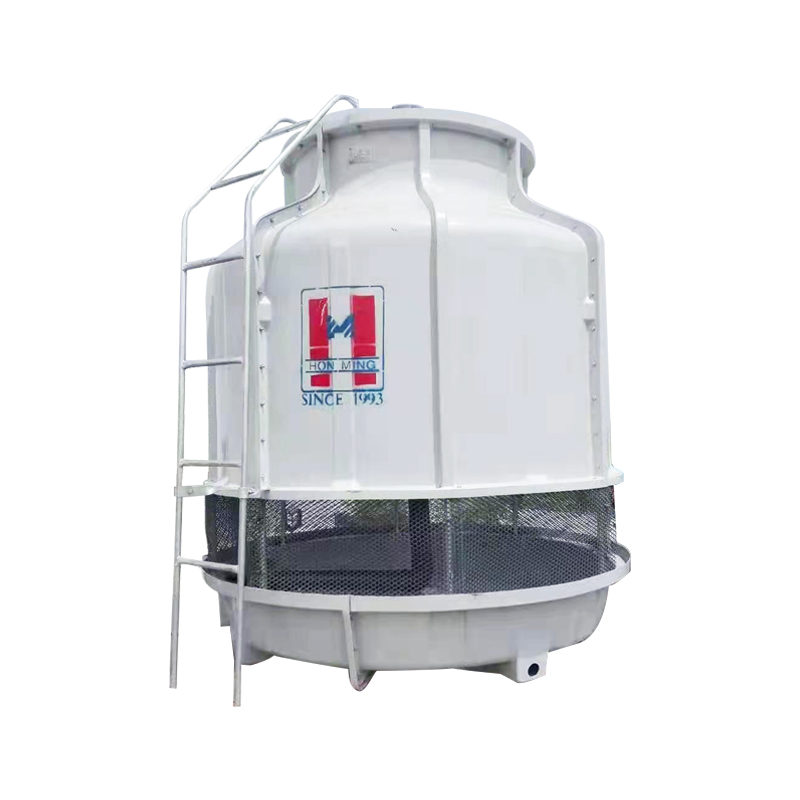

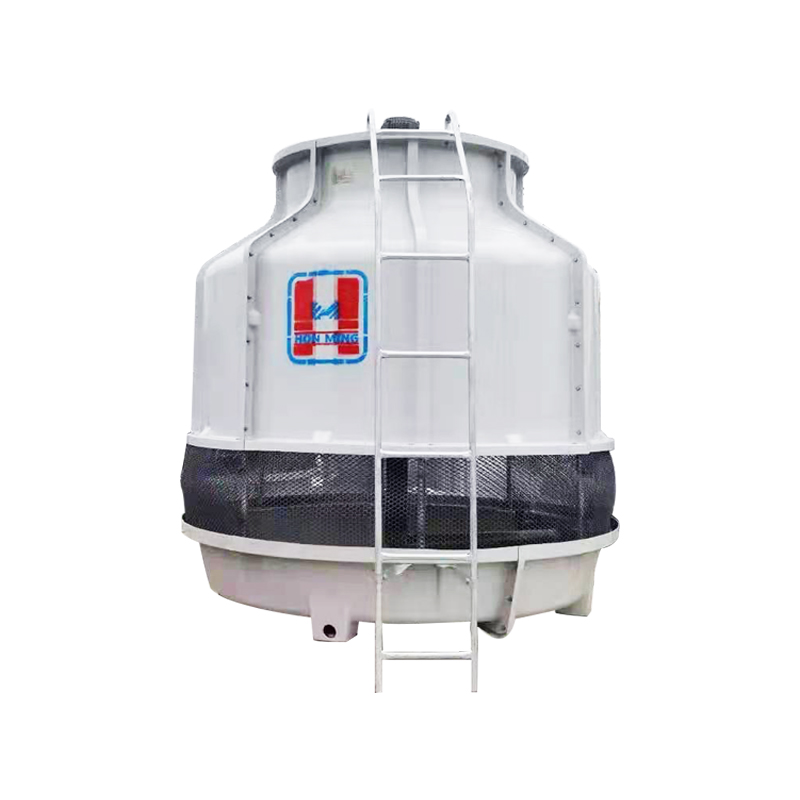

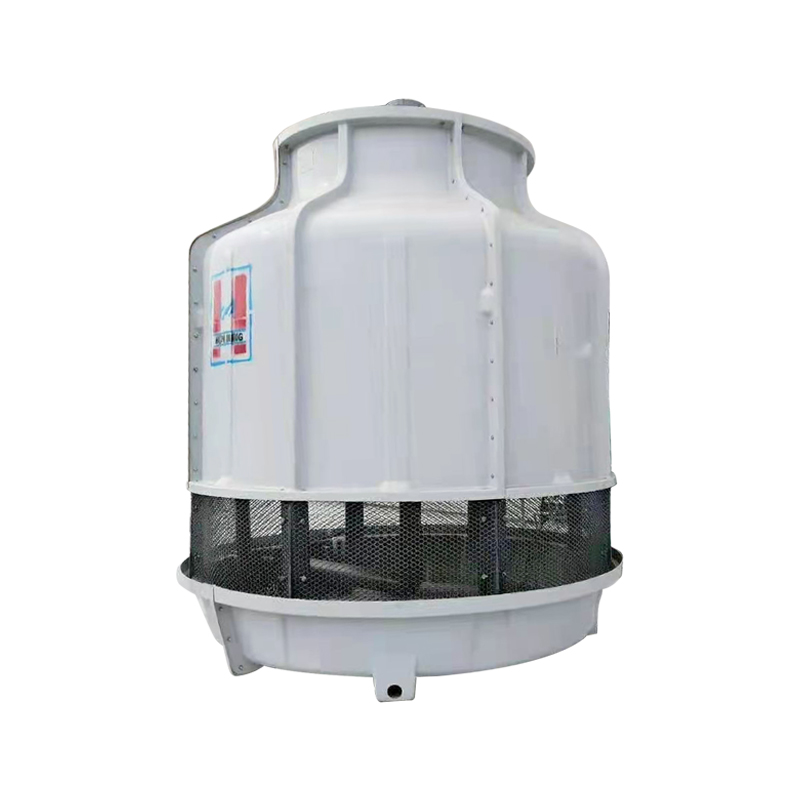

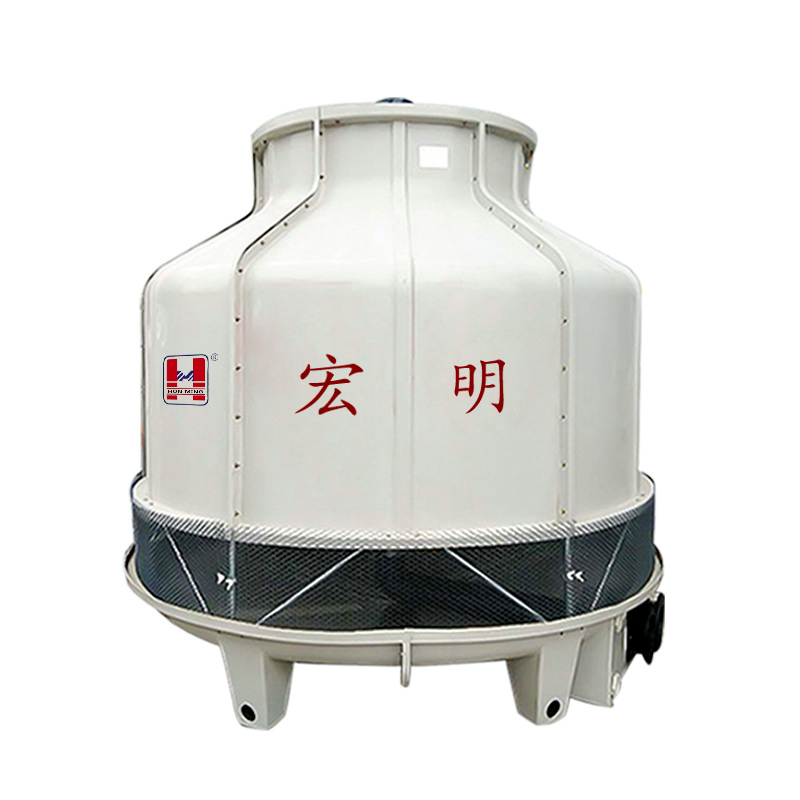

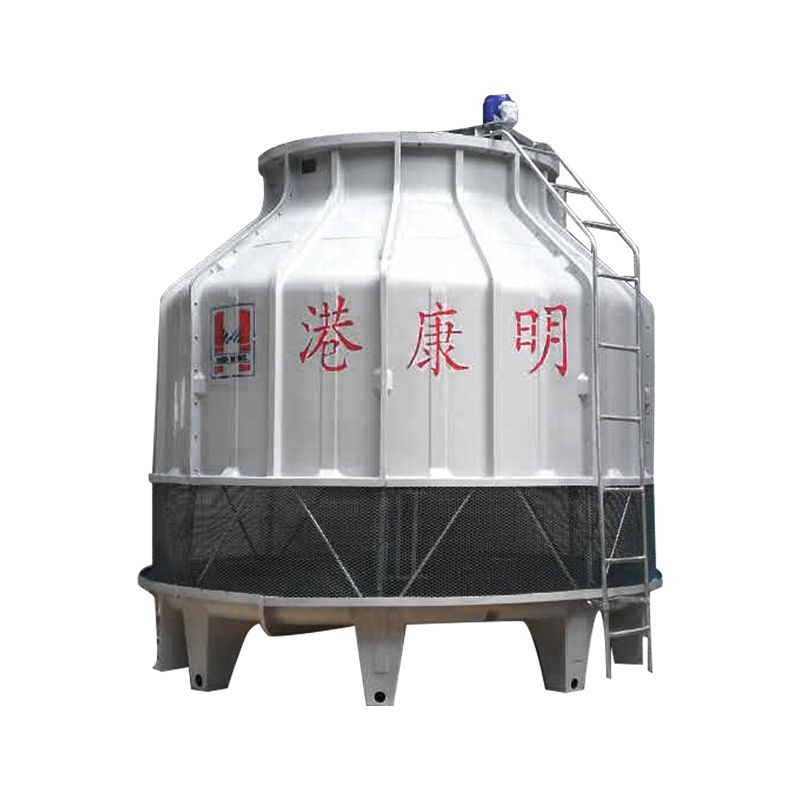

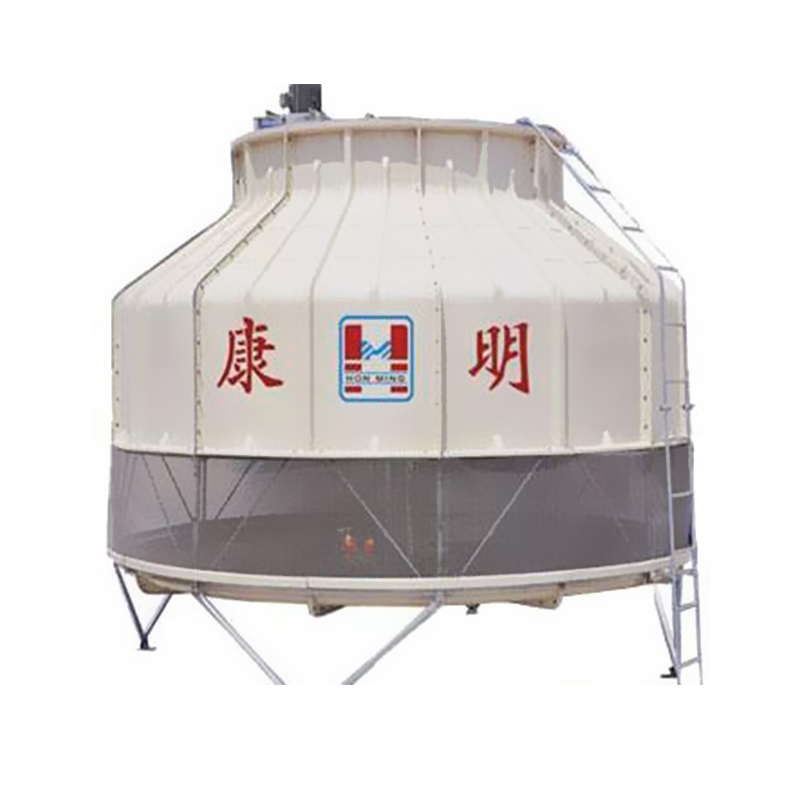

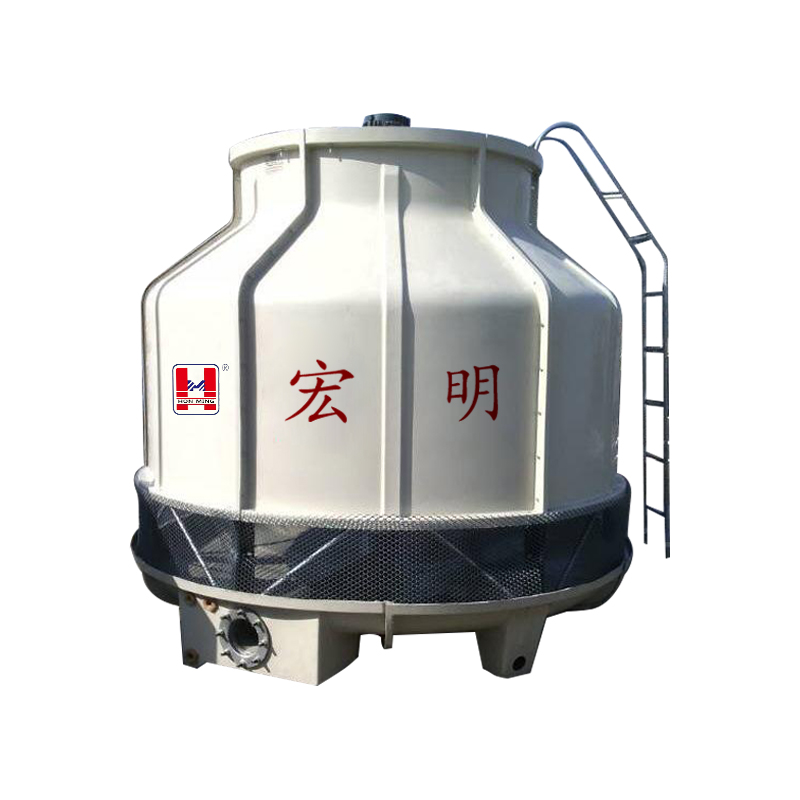

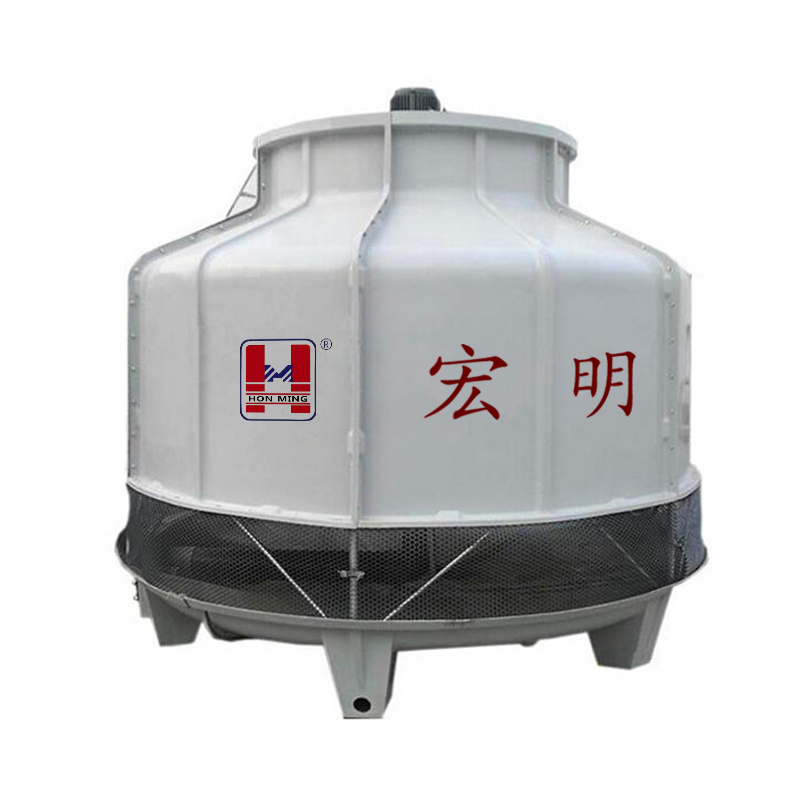

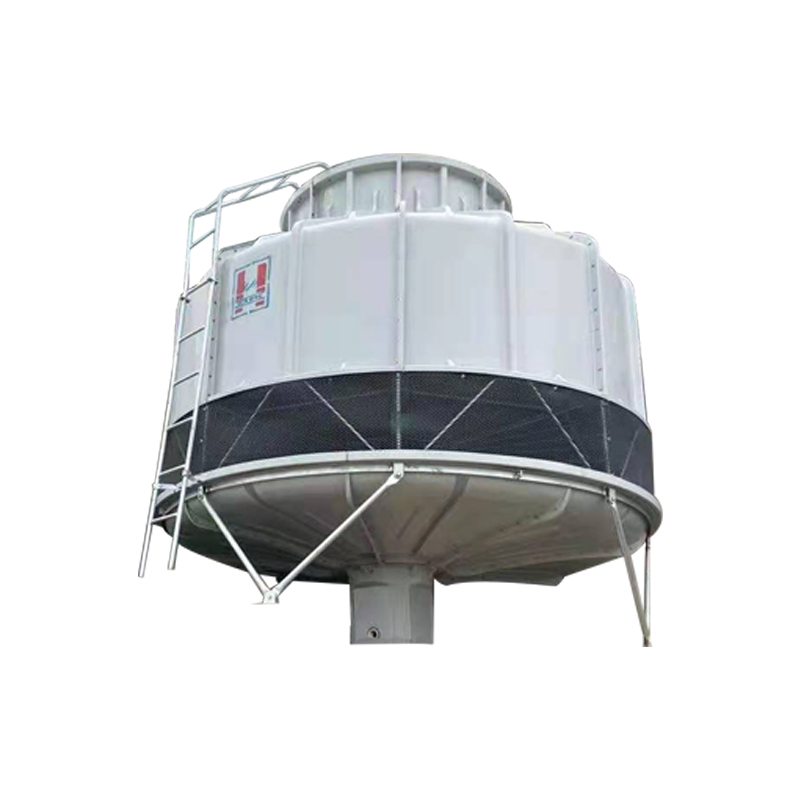

High Quality Round Cooling Tower

HON MING round cooling tower is designed for power and water saving in industry.We adopt fibre-reinforced plastic with features of light, low noise and high quality as raw materials. Not only match with high quality pure copper motor but also improve product’s material selection and technology. It have more perfect users experience and good feedback.

For different requirement, HON MING also can manufacture all kinds of cooling tower, and supply lots of design and installed capacity to meet the needs of different client special cooling tower requirements. Such as low noise, ultra-low noise or AI smart control cooling tower etc.

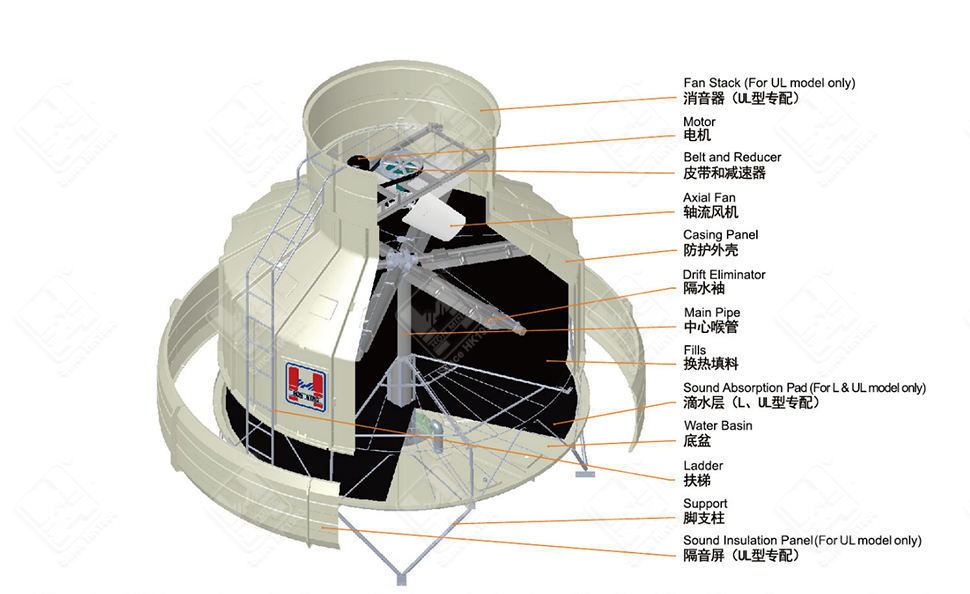

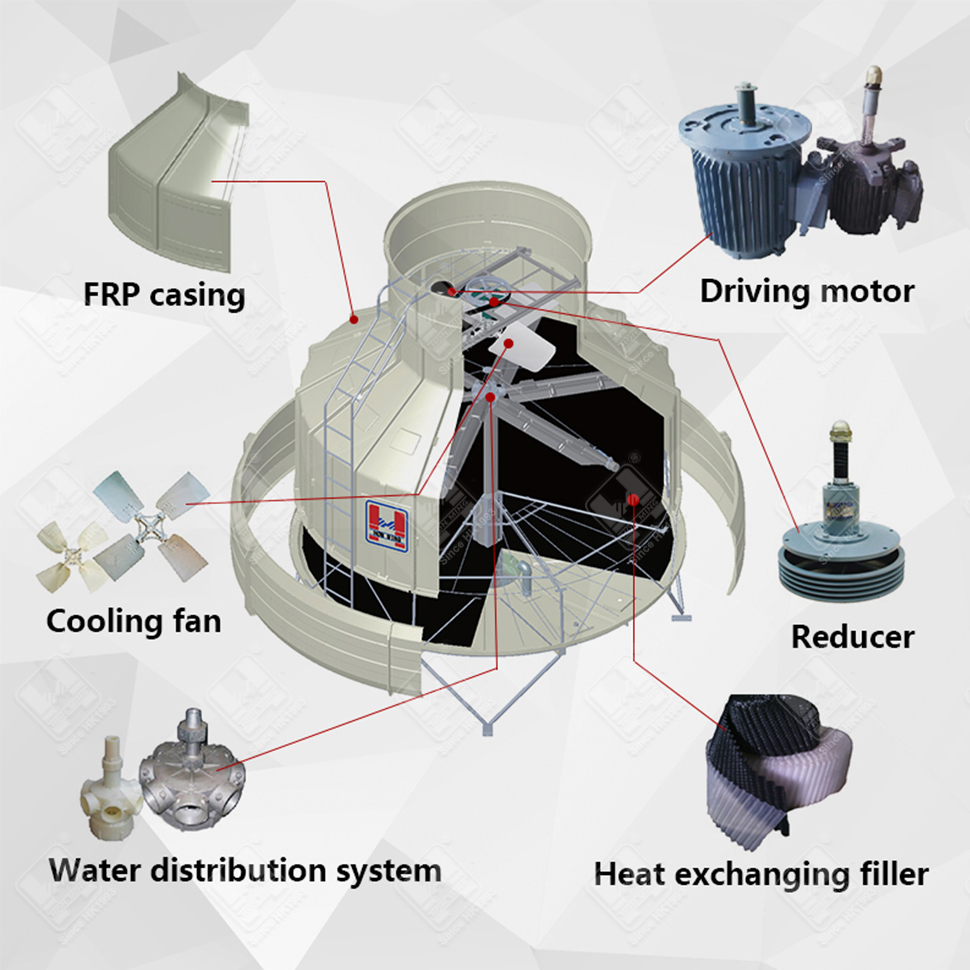

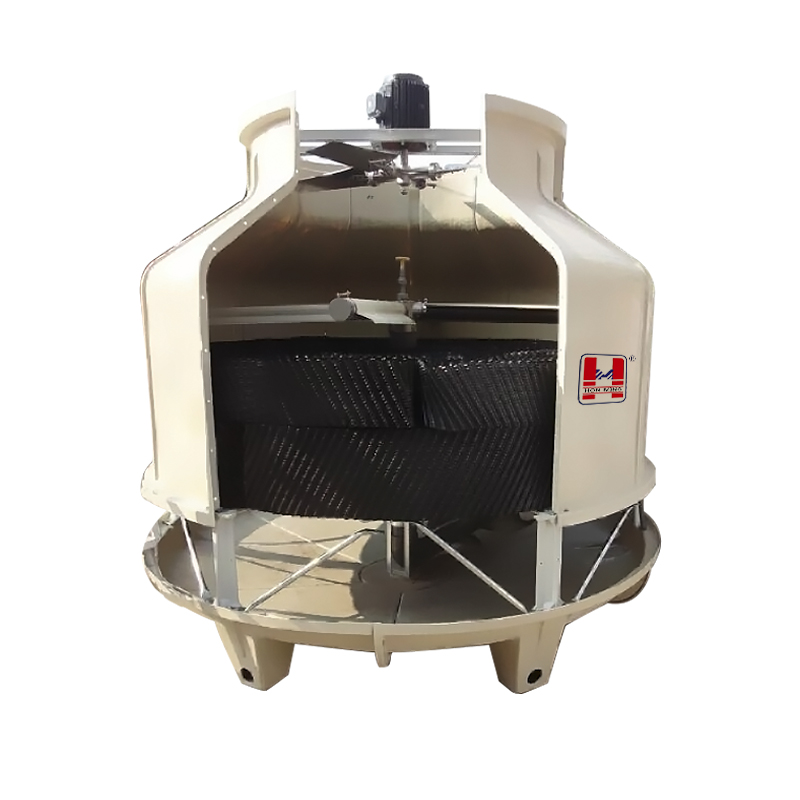

Cooling tower is mainly composed by motor,fan,sprinkler head,PVC filler,casing,basing and air intake louver.

• Tower structure frame

1.High quality Magnesium aluminum galvanized steel imported from South Korea

2.Super corrosion-resistant, self-healing.

3.Longer service life,15-20 years or more.

4.Using life is 3-4 times than normal galvanized

• FRP casing

1.High quality FRP coating more than 3mm,others general 1-2mm.

2.Damp-proof, anti-corrosion, UV protection

3.The hydrophilic FRP is double-sided coat

4.Smooth surface and lotus leaf effect

• Belt

1.Imported Japanese famous brand belt

2.Long using life

• Motor

1 The forging cover has sealing ring, totally sealed.

2 With groove rain-proof design.

3 Wire connector with magnesium alloys technology, as good as stainless steel.

4 Using life 3 times than normal motor

• Reducer

1 With 3 bearing to avoid fall off to harm people

2 Outside with anti-corrosion treatment. Longer using life

3 Design down fix the centrifugal force

4 The using life is 4-6 times than normal reducer.

• Filling

1.Imported high-quality updated and anti-frame P.V.C/PP

2.Anti-UV and anti-chemical corrosion through vacuum blister.

3.Floating water loss rate is less than 0.001%

4.PP heat exchange filling can afford to 95℃

• Fan

1.Made of FRP, Aluminum alloy or Stainless steel

2.Tested by static balance and dynamic balance

3.With 2 layer design

4.The chord width is the widest in the industry.

• Water distribution system

1 Adopt rotary tube type water distributor

2 Uniform water spraying

3 Water and air flow is reverse direction moving

4 Energy-saving and high efficiency

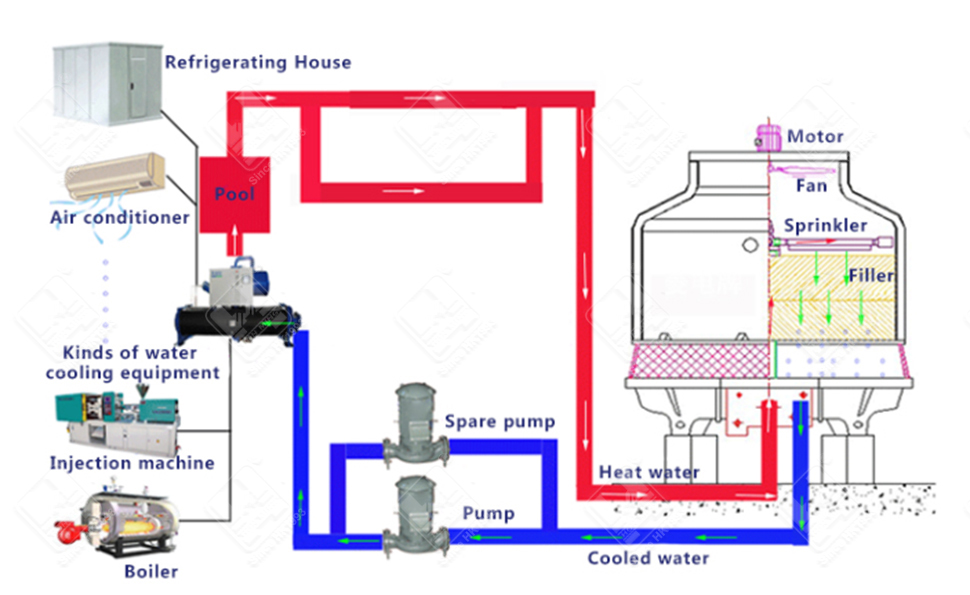

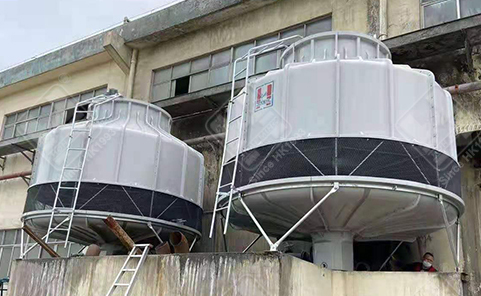

It is widely used in air conditioning system,frozen series,injection molding,plastic,leather, foam, power generation, food,textile,steam turbine, chemicals,packing industrial,aluminum processing, air compressors, industrial cooling water and other fields.
Most used for air conditioning cooling, freezing, plastic chemical industry.

Round cooling tower,we can manufacture 3 types, one is standard cooling tower(MD series), one is industrial cooling tower(MD I series), another is heat resistant cooling tower(MDR series).
The standard cooling tower entering water temperature is 37°C.
The industrial cooling tower entering water temperature is 43°C
If entering water temperature higher than 43°C,we suggest you choose the heat resistant cooling tower which can afford 95°C.

• Inlet temperature 37°C, outlet 32°C; temperature difference 5°C;
• Wet bulb temperature 28°C, and atmospheric pressure 99400Pa.
• Specifications and dimensions are subject to change without notice.

• Design: Operation is simple and convenient, easy disassemble.
• Suspension structure: stainless steel structure, painted with epoxy-(coal) tar or chlorosulfonated polyethylene after zinc plating.
• Enclosure structure: polyester glass steel(FRP), with light weight, high strength corrosion resistant, anti-aging, long service life.
• Air duct: Kinetic energy recovery type, reasonable and high efficiency air distribution.
• Fan: Aerofoil epoxy-(coal)tar blade with big air flow, high efficiency, low noise and corrosion resistance.

Selection and instructions

1.Before selection, you could provide cooling water consumption, entering water temperature, outlet water temperature, air wet bulb temperature.
2.You can run -50 ℃, The coldest average temperature below -10 ℃,  should tell us when you order, We will take ice prevention measures.
3.Circulating water turbidity is less than 50 mg/L, Can’t contain oil and impurities.
4.Entering water temperature less than 80℃.
5.In and out of the water pipe can be 90 °, 180°, 270° rotation direction.
6.The fan blade angle is adjustable and ensure the angle is consistent.
7.The motor can not more than rated current.
8.Fire prevention and press resistant.
