Good news about the project
HON MING air conditioners once again support the high-end experimental project of Jiaotong University-China Western Science and Technology Innovation Port. HON MING air conditioners use its strength to create higher quality and more intelligent clean temperature and humidity air conditioning units, improve the comfortable working environment, and contribute to the construction of the education field!
Xi'an Jiaotong University Laboratory
The Western China Science and Technology Innovation Port—Smart Town (hereinafter referred to as "Innovation Port") is a national-level project jointly constructed by the Ministry of Education and the Shaanxi Provincial People's Government. It serves as a crucial platform for Shaanxi Province and Xi'an Jiaotong University to implement the three national strategies of the "Belt and Road" Initiative, innovation-driven development, and the Western Development Strategy. Jointly constructed by Xi'an Jiaotong University and the Xixian New Area, it is located in Fengxi New City of Xixian New Area, covering an area of 5,000 mu in its first phase. It is positioned as a national mission-driven force, a global science and education hub, a service engine for Shaanxi, an innovation-driven platform, and a model smart town. Innovation Port consists of a platform area, a college area, and an incubation area. The platform area, covering approximately 5,000 mu, has established 8 major platforms, 29 research institutes, and over 300 research platforms in four major areas: science, engineering, medicine, and humanities.
HON MING Solutions
At Jiaotong University, researchers race against time to explore the forefront of academic research, striving to contribute to social development. A stable and suitable environment is one of the key factors for the smooth progress of scientific research, and the air conditioning system plays a crucial role. HON MING air conditioners, with their excellent performance, have successfully entered the laboratories of National Chiao Tung University, becoming an "invisible hero" behind scientific research.
Experimental challenges urgently need to be overcome, and environmental requirements are imminent.
The laboratories at Jiaotong University undertake numerous cutting-edge research projects, ranging from materials development to biological experiments, all of which have extremely stringent environmental requirements. Traditional air conditioning systems struggle to precisely control temperature and humidity, leading to fluctuations in experimental data, extended experimental cycles, and even impacting some experimental results. Furthermore, the large number of laboratory devices and their high heat dissipation demands mean that traditional air conditioning systems often fall short during peak loads, severely hindering research progress.
In-depth research and precise measures lead to perfectly tailored solutions.
After understanding these pain points, the HON MING air conditioning technical team immediately went to the laboratory, communicated closely with researchers, and gained a detailed understanding of the environmental requirements of each experimental stage. Following rigorous calculations and analysis by engineers, HON MING tailored an integrated air conditioning solution for the Xi'an Jiaotong University laboratory.

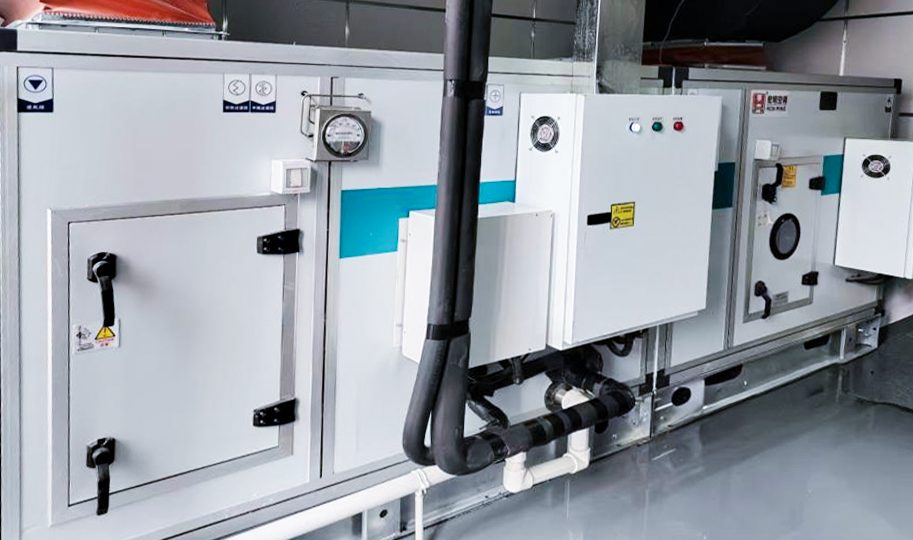

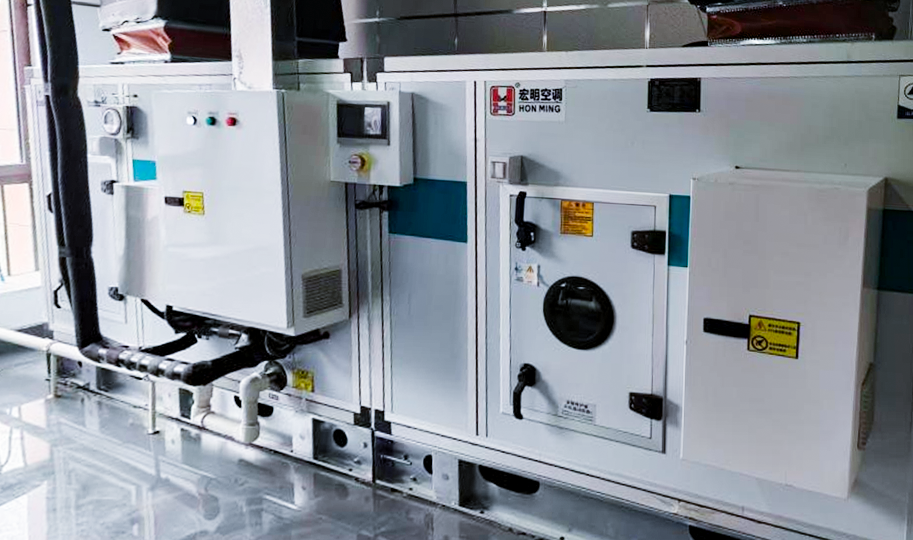

This project selected HON MING's high-efficiency HMZK series combined direct expansion air conditioning units, paired with an intelligent control system, to achieve precise control of laboratory temperature and humidity. Temperature fluctuations can be controlled within ±0.5℃, and humidity errors do not exceed ±5%, providing a stable environmental foundation for various experiments.
Since the HON MING air conditioning system was put into use, the laboratory environment has been greatly improved. The operational stability of precision instruments has been significantly enhanced, the accuracy and repeatability of experimental data have been significantly improved, and research efficiency has been greatly increased. At the same time, the energy-saving characteristics of the HON MING air conditioning system have also saved the laboratory a lot of energy costs, and the ultra-quiet operation mode allows researchers to concentrate on their work in a quiet environment without being disturbed by noise. The outstanding performance has won praise from the research team.

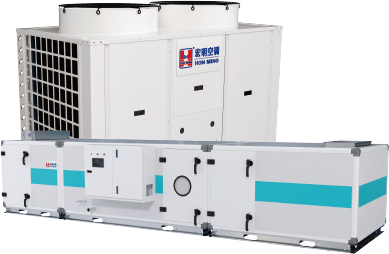

HON MING DC VFD Direct Expansion Series
The HMZK series direct expansion combined air conditioning unit is a high-tech product combining our company's latest air source compression condensation technology with air handling technology. It is particularly suitable for applications with special needs, such as medical and health, biopharmaceutical, microelectronics, automotive manufacturing, experimental research, food processing, and schools. It boasts advantages such as integrated cooling source, customized air handling, and integrated control. Its simplified system structure allows for flexible distributed applications, saving on engineering construction and equipment operating costs, making it a classic example of a simple and efficient design philosophy.
Unit features:
※ Patented anti-cold bridge aluminum alloy frame structure, made of high-quality T6 aluminum alloy through fixed die extrusion, with excellent strength and beautiful appearance;
※ Modular design: The air handling unit adopts a modular design, with each module being 100mm thick. The height and width of the unit can be flexibly designed according to the installation site conditions, making installation flexible.
※ Adopts 30-50mm thick double-layer sandwich panels, with excellent heat insulation performance. The inner and outer panels can be made of high-quality color steel plate, galvanized steel plate, stainless steel plate or Mg/zinc plate.
※ The compressor and fan of the unit are selected from well-known brands, which are highly efficient, low in noise and strong against liquid slugging; before leaving the factory, they undergo dynamic and static balance tests and calibrations, and are equipped with special anti-vibration measures, resulting in less vibration, quieter operation and longer service life.
※ Advanced control and reliable operation.

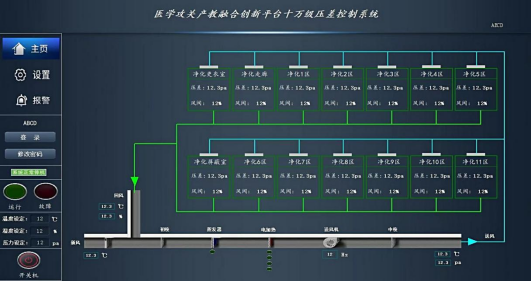

It uses a single-chip microcomputer or PLC control system, with fuzzy control or PID control in the controller. The human-machine interface is user-friendly, easy to operate, and highly reliable. Reasonable piping of the speed reducer level can ensure the optimal working state of each stage of the filter.
※ Superior Heat Exchanger Quality
Optimized and improved coil clearance, combined with a copper tube and aluminum fin structure manufactured using precision mechanical expansion, results in high heat exchange efficiency, a large heat transfer coefficient, and excellent heat transfer performance.
※ Excellent internal piping structure for air conditioning ensures reliable control and operation.
Utilizing piping simulation design technology and comprehensive stress data analysis, leaks are prevented.
※ User-friendly design for reliable control and operation.
The unit adopts a full-frame structure, and all panels are removable for easy installation and maintenance. The unit is also equipped with an inspection door for quick inspection and maintenance of internal components. All maintenance work can be performed from one side of the unit. All sharp corners of the unit components are rounded to ensure safety.
HON MING Air Conditioning has always adhered to the principle of "Always Following the Party and Building the Chinese Dream Together." HON MING has established strategic partnerships with several universities, including Tianjin University and Tianjin University of Urban Construction. It consistently upholds the philosophy of "Survival through Quality, Development through Technological Innovation, and Market Share through Excellent Service," and consistently emphasizes technological and manufacturing process innovation. HON MING provides solid support for its development and growth in areas such as R&D investment, talent cultivation, and incentive systems.
HON MING Air Conditioning is committed to a people-oriented approach, leveraging its talent advantages to build a highly efficient, dynamic, and socially responsible innovative team. It strives for continuous progress and breakthroughs in innovation, aiming to create a century-old, enduring brand. With efficient, energy-saving, and environmentally friendly products, HON MING cares for the harmonious development of humanity and the planet, creating a better life for mankind! We welcome partners from all over the world to join hands with HON MING to create a brilliant future and make due contributions to the cause of energy conservation and emission reduction!
