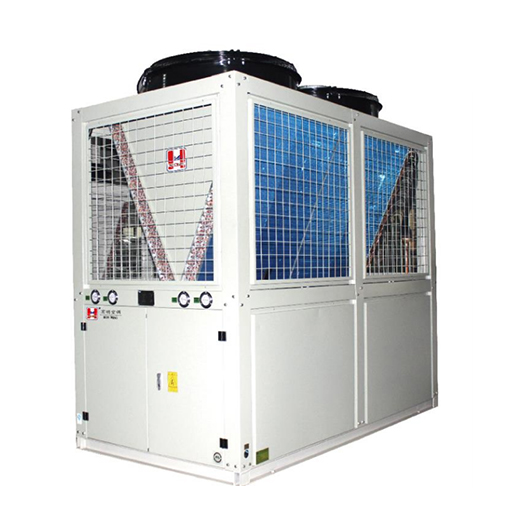

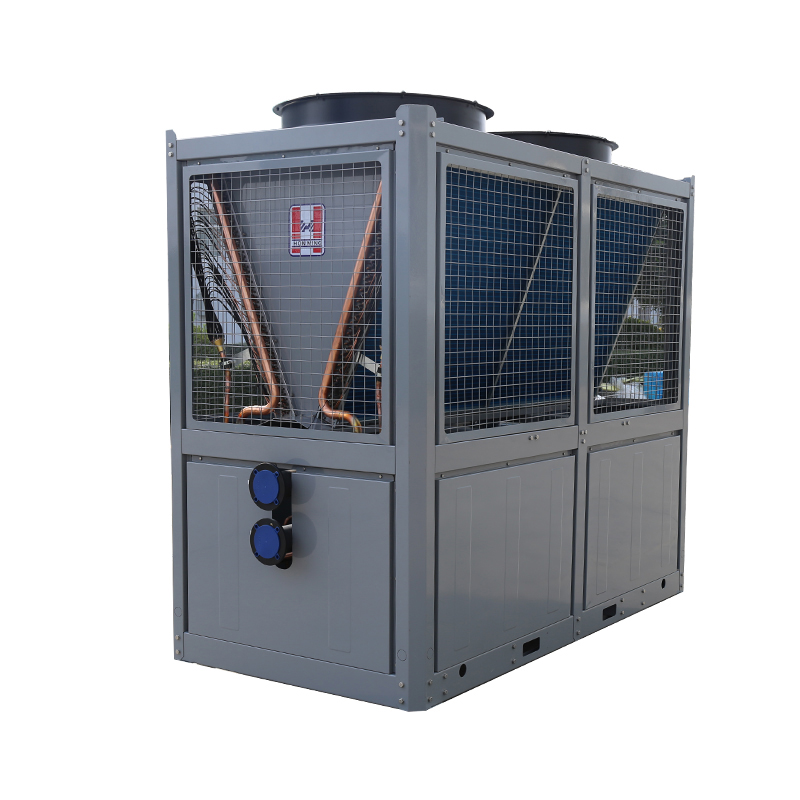

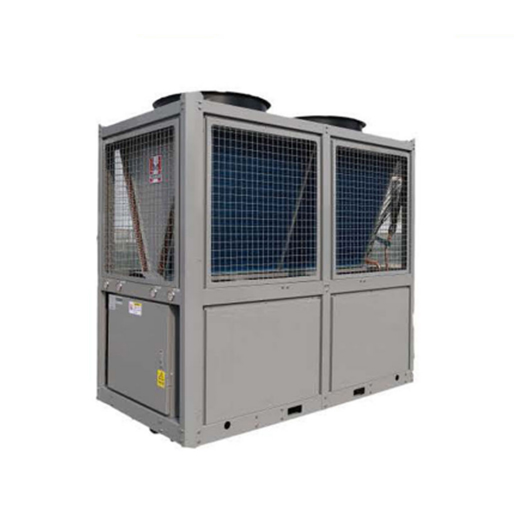

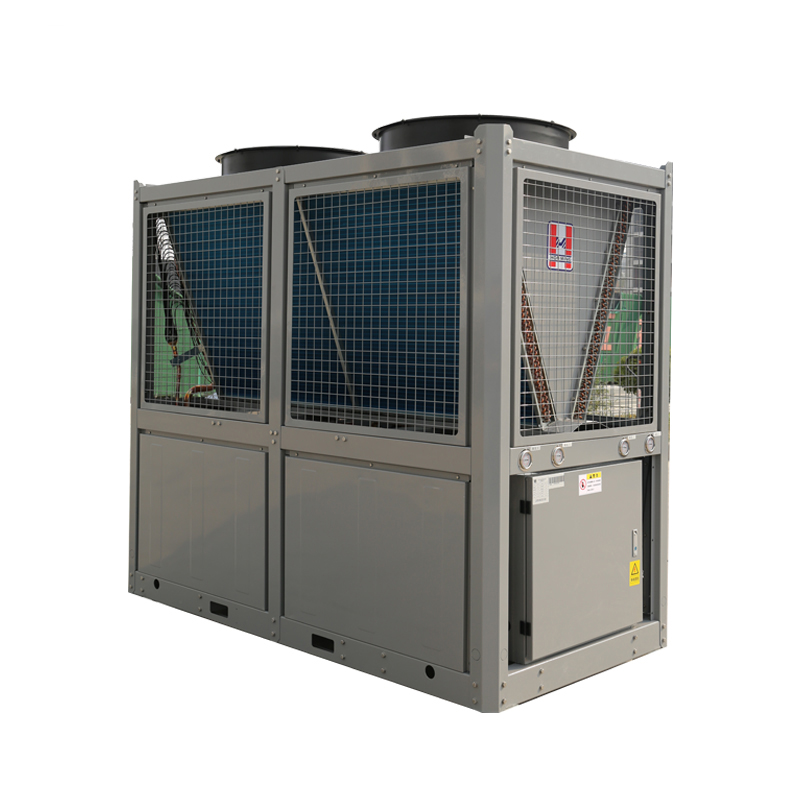

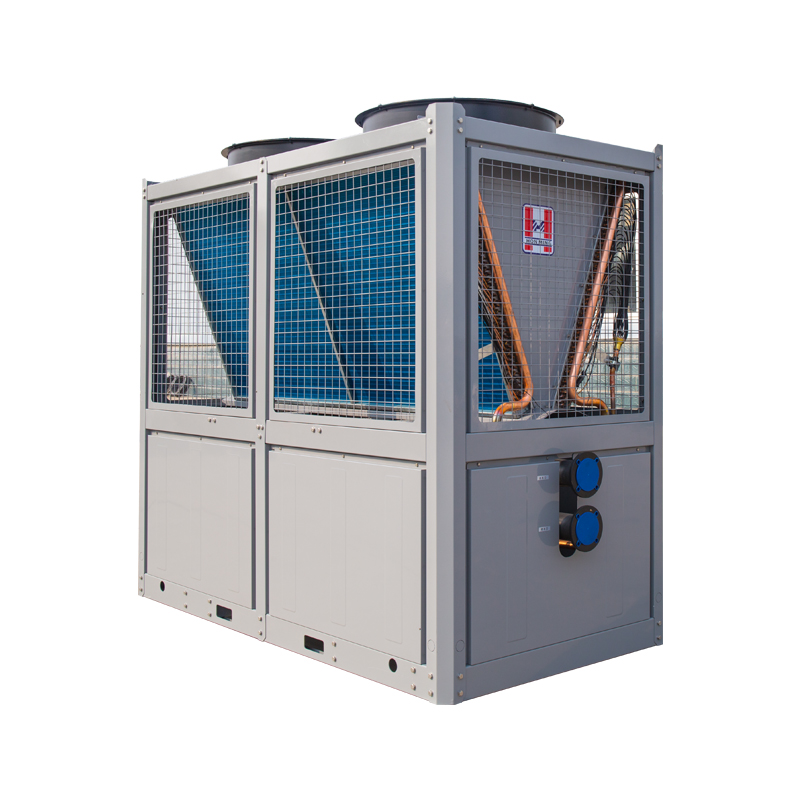

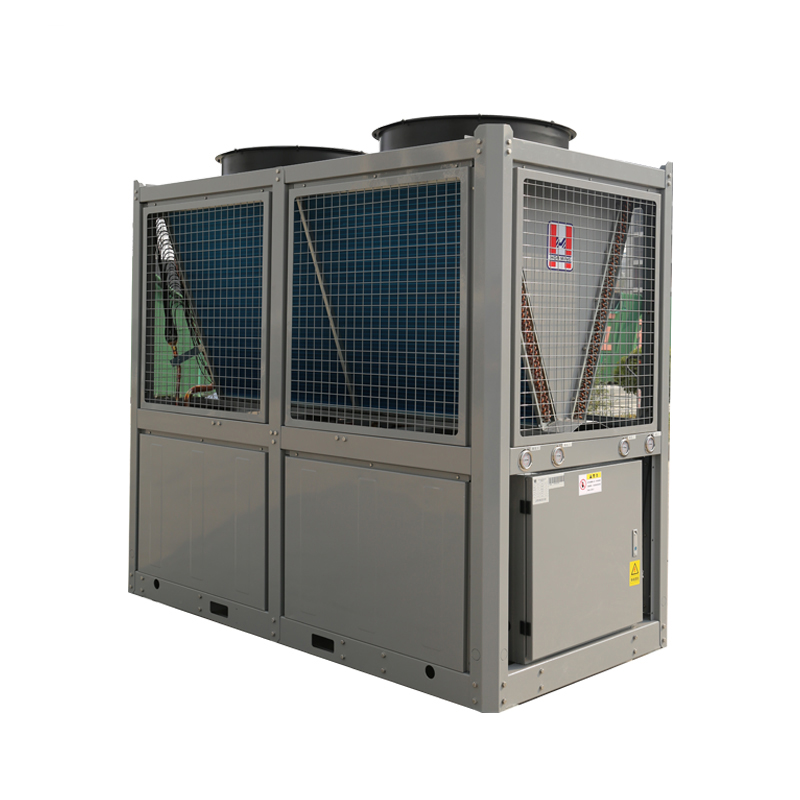

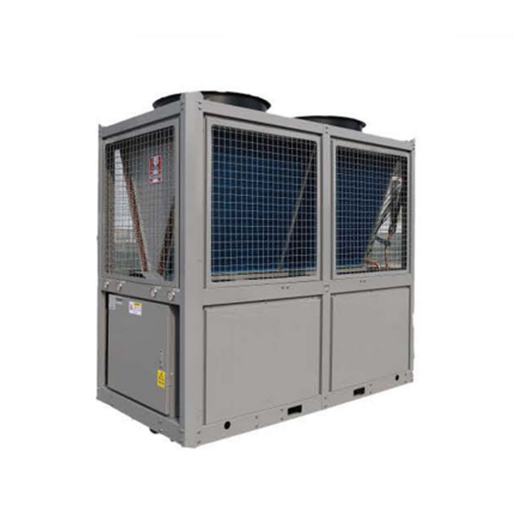

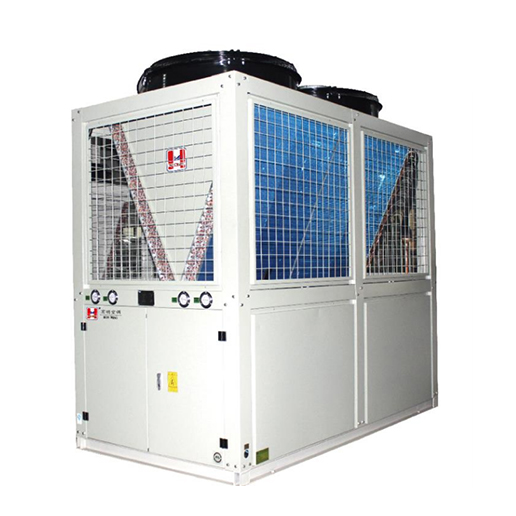

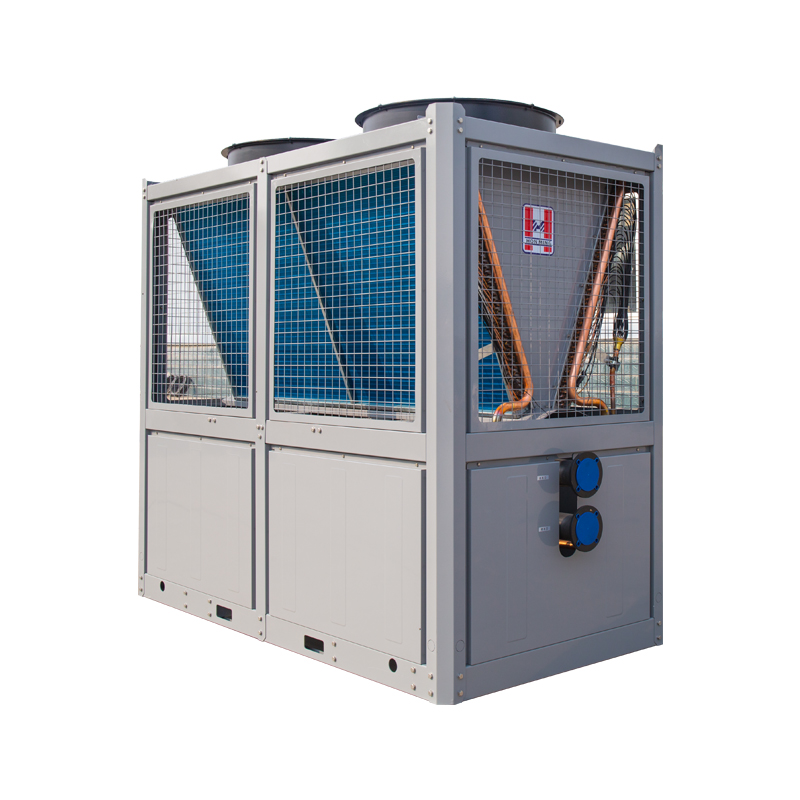

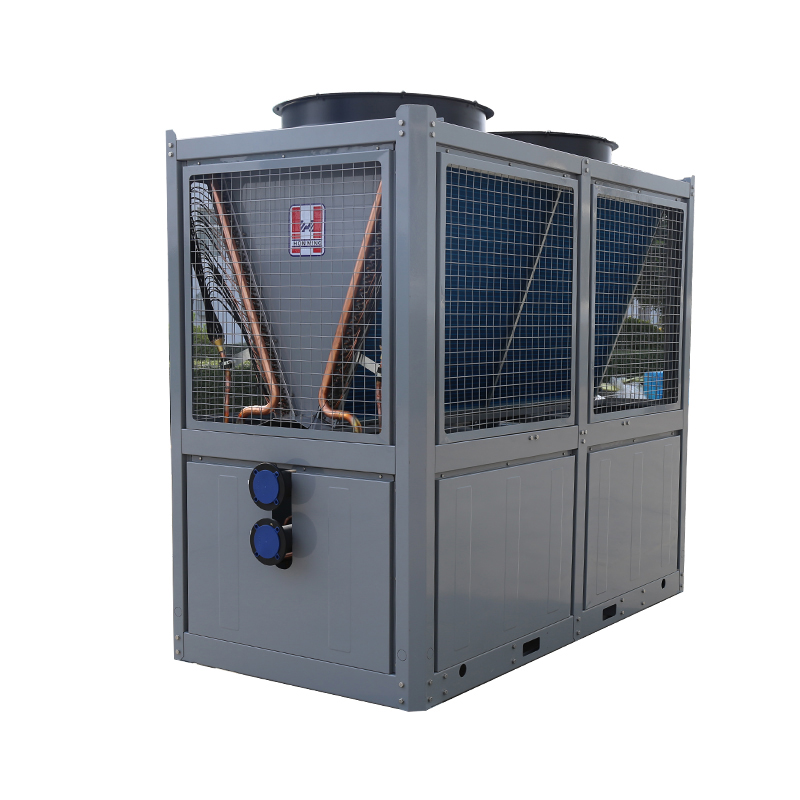

HON MING air-cooled module (cold/hot water) unit is a high-efficiency environmentally friendly air-conditioning unit based on years of experience in the design and manufacture of air-cooled heat pumps. It has obtained the Chinese product energy-saving certification, which far beyond the national energy-saving standards.
Type: HMAW Series Air Cooled Type
Rated Cooling Capacity: 65kw-150kw
Rated Heating Capacity: 68kw-158kw
Operating Temperature Range: Cooling 16℃ -43℃
HON MING air-cooled module (cold/hot water) unit is a high-efficiency environmentally friendly air-conditioning unit based on years of experience in the design and manufacture of air-cooled heat pumps. It has obtained the Chinese product energy-saving certification, which far beyond the national energy-saving standards.
The unit adopts the internationally recognized environmentally friendly refrigerant R410A, which has the characteristics of less refrigerant charge, higher energy efficiency ratio, lower operating cost, and environmental friendly compared to ordinary units.
Widely used in commercial, industrial and civil buildings such as villas, hotels, hospitals, office buildings, entertainment venues, theaters, etc.
| Specifications | Single-cold type | HMAW-65C | HMAW-75C | HMAW-130C | HMAW-150C | ||
| Full-year refrigeration type | HMAW-65CL | HMAW-75CL | HMAW-130CL | HMAW-150CL | |||
| Number of module units | Set | 1 | 1 | 1 | 1 | ||
| Unit performance parameters | Rated cooling capacity | kw | 65 | 75 | 130 | 150 | |
| Rated heat heating（heat pump type） | kw | 68 | 78 | 136 | 158 | ||
| Rated refrigeration output power | kw | 21.5 | 24 | 44 | 49 | ||
| Power Supply Type | AC380V/3N-50Hz | ||||||
| Control system | Smart control | ||||||
| Security protection function | High voltage protection, low voltage protection, compression overload protection, phase sequence protection, antifreeze protection, current protection, exhaust temperature protection, etc | ||||||
| Operating temperature range | Single-cold type | Cooling 16-43℃ | |||||
| Full-year refrigeration type | Cooling -10-43℃ | ||||||
| Standard heat pump type | Cooling 16-43℃、Heating -10-21℃ | ||||||
| Low-temperature heat pump type | Cooling 16-43℃、Heating -25-21℃ | ||||||

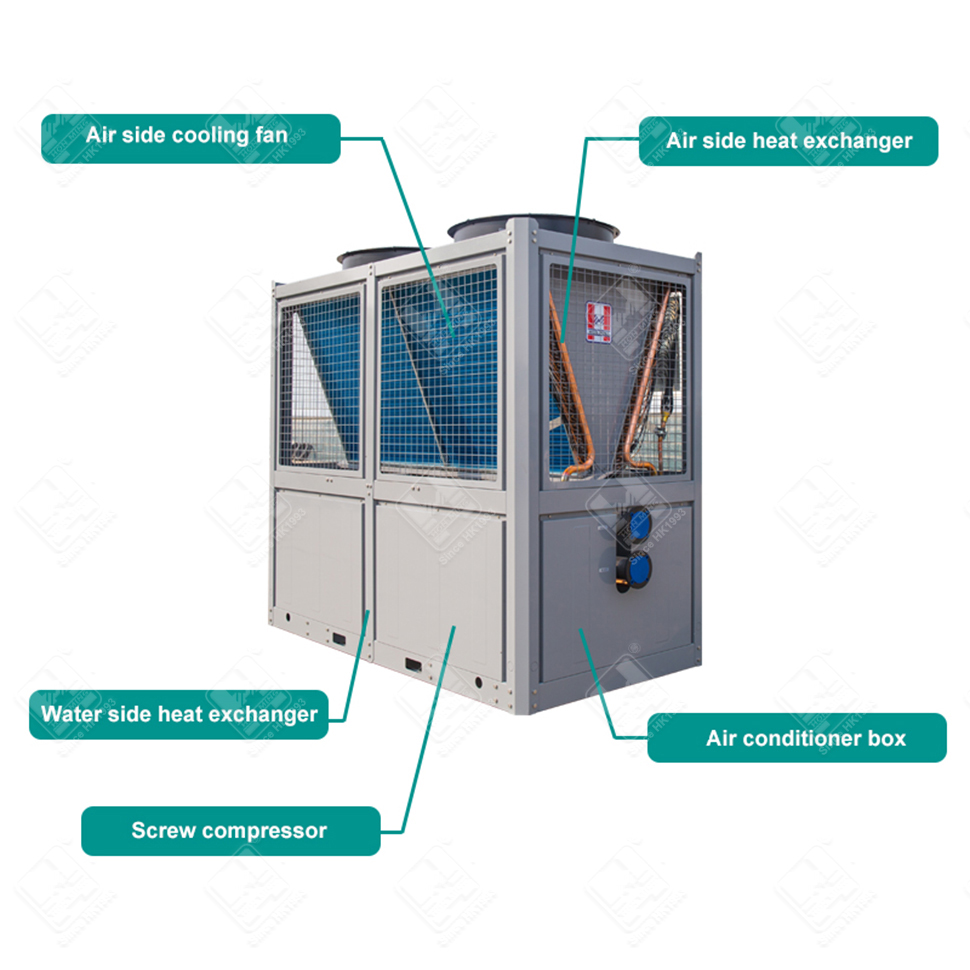

| Main component parameters | Compressor | Types | Emerson compressor | ||||
| Number | Set | 2 | 2 | 2 | 4 | ||
| Refrigerant type | R410A | ||||||
| Air-side heat exchanger | Types | Copper tube aluminum fin heat exchange coil | |||||
| Fan type | Large diameter low noise axial flow fan | ||||||
| Number of fans | Set | 2 | 2 | 2 | 4 | ||
| Water-side heat exchanger | Types | High efficiency shell and tube type | |||||
| Water flow | m³/h | 11.1 | 12.9 | 22.2 | 25.8 | ||
| Water pressure drop | kPa | 38 | 42 | 45 | 46 | ||
| Maximum bearing water pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | ||
| Inlet and outlet water pipe | DN | 100-125 | 100-125 | 100-125 | 100-125 | ||
| Some waste heat collector (Optional) |
Types | High efficiency shell and tube type | |||||
| Water flow | m³/h | 2 | 2.1 | 4 | 4.2 | ||
| Water pressure drop | kPa | 24 | 24 | 24 | 24 | ||
| Maximum bearing water pressure | MPa | 1.0 | 1.0 | 1.0 | 1.0 | ||
| Inlet and outlet water pipe | DN | 25 | 25 | 25 | 25 | ||
| Size | Length | mm | 2150 | 2150 | 2500 | 2150 | |
| Width | mm | 1190 | 1190 | 1345 | 2380 | ||
| Height | mm | 1970 | 1970 | 2350 | 1970 | ||
| Net weight | Without heat recovery | kg | 630 | 720 | 1250 | 1400 | |
| With heat recovery | kg | 700 | 790 | 1380 | 1530 | ||
| Operating Weight | Without heat recovery | kg | 660 | 756 | 1300 | 1450 | |
Single module has 2 ~ 4 levels of energy regulation, the maximum combination can achieve 2 ~ 32 levels of energy regulation, air conditioning system part load operation, automatic matching operation unit, maintain the best operation state, more energy saving.
With small waist structure, the air distribution is more uniform, the heat transfer is sufficient, the efficiency is increased by 30%, and the power loss of the compressor is reduced.
The unit adopts microcomputer control system, large screen LCD text display, friendly man-machine interaction page and multi-level password protection to prevent wrong operation from affecting system operation. The unit can automatically memorize and store the data and operation status of the unit before the power failure. After a new call, the unit will automatically return to the operation status before the power failure without resetting, which is convenient for users to use and manage.
RS-485 standard communication interface, built-in Modbus communication protocol, can realize building automation networking group control.
Each unit is designed with multiple systems, and the unit is started by stages, so as to reduce the starting current of the unit, reduce the impact on the power grid, and ensure the safety of other electrical equipment in the same area.
Only two standard flexible pipe joints are needed for the pipeline connection between units, so the engineering installation is fast and convenient; Installed on the floor, no cooling tower, no machine room, small floor area.
Adopts the optimized modular design, different models of modules can be combined freely, and the maximum 16 modules are designed in parallel.
The minimum cooling capacity of modular combination is 65kW and the maximum cooling capacity is 2080kw; The minimum heating capacity is 70kw and the maximum heating capacity is 2240kw.
Product Highlights

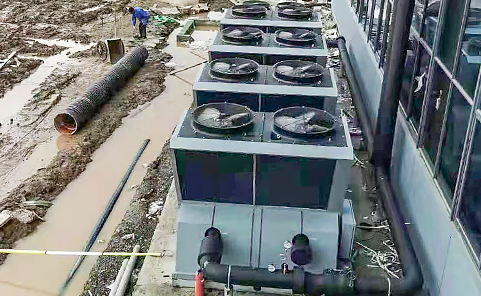

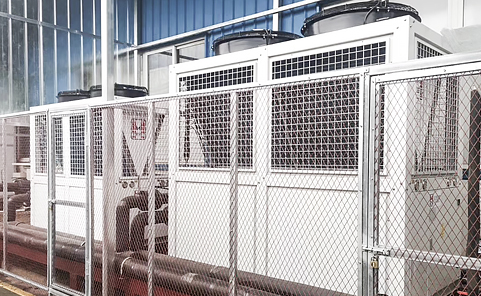

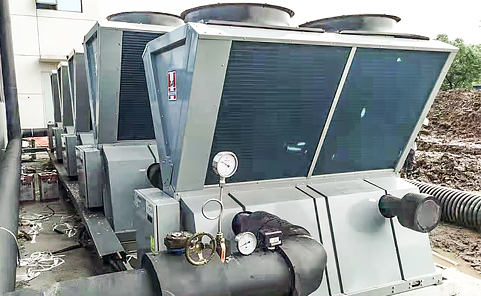

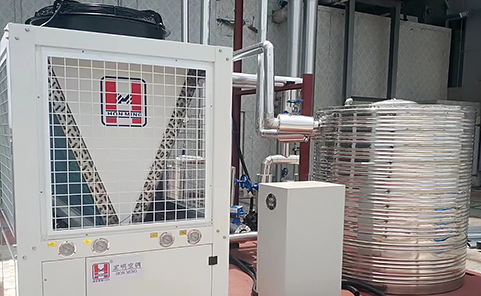

Installation Case
