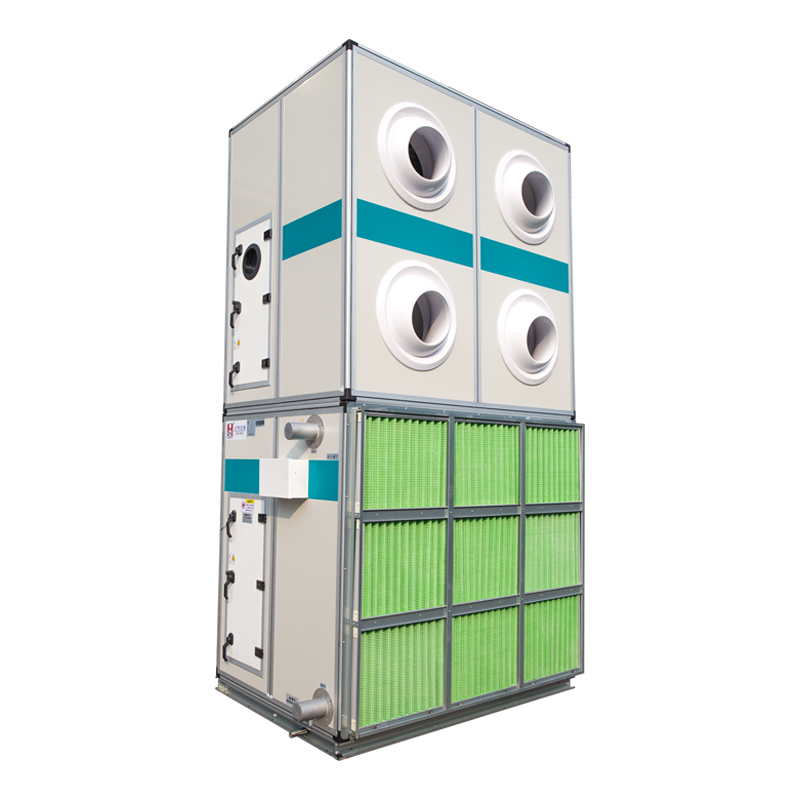

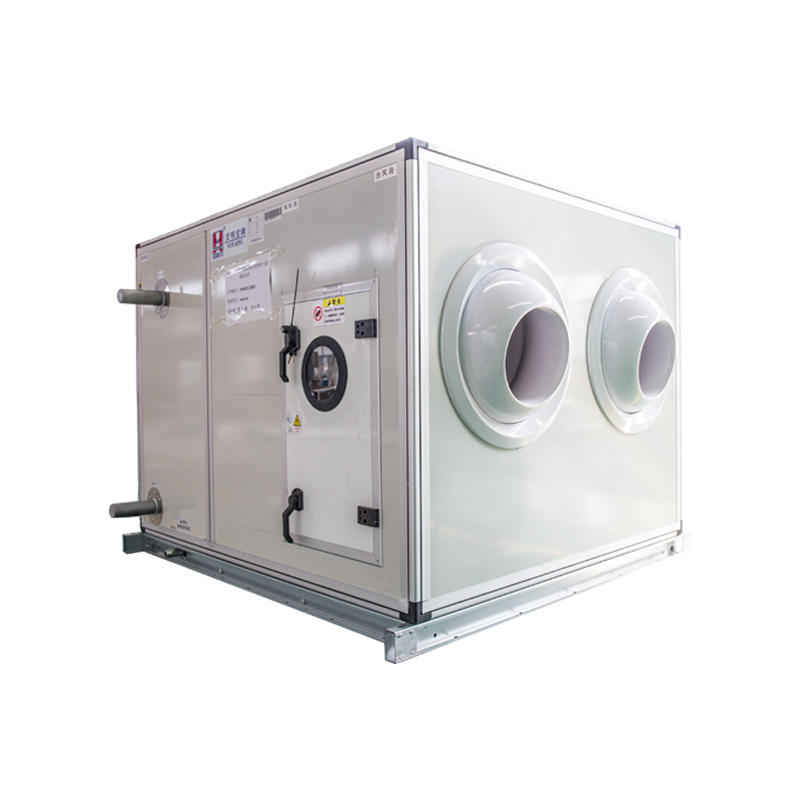

The spherical nozzle with superior jet performance is used as the air supply port, which can realize long-distance air supply without duct. The air outlet direction of the spherical air outlet can choose horizontal and vertical air supply modes. Particularly suitable for high and large spaces, especially for large-area workshops where the warm air is sent down.
Type: HMK Series Remote Jet Cabinet Type
Air Flow: 2000-15000m³/h
Power Supply: 380V 3PH 50Hz
The spherical nozzle with superior jet performance is used as the air supply port, which can realize long-distance air supply without duct. The air outlet direction of the spherical air outlet can choose horizontal and vertical air supply modes. Particularly suitable for high and large spaces, especially for large-area workshops where the warm air is sent down. When the air is supplied horizontally, the air supply angle can be adjusted manually or using a controller, so that the hot and cold air can be delivered to the desired location.
| Model | Dimensions(mm) | Condensate drain pipe (In) |
Weight (Kg) | Wind wheel | Inlet and outlet pipe | Air return size | |||||||||
| Length | Depth | Height | |||||||||||||
| 4 rows | 6 rows | 8 rows | 4 rows | 6 rows | 8 rows | Diameter | Quantity | External pipe thread | L×H | ||||||
| A | B | C | D | D | D | E | G | ln | Set | ln | mm | ||||
| HMK-H-2.0-AH-SL | 1020 | 1200 | 1340 | 1340 | 1400 | 530 | ∅250×2 | 1″ | 140 | 155 | 170 | 9″ | 1 | 1½” | 900×342 |
| HMK-H-2.5-AH-SL | 1020 | 1200 | 1340 | 1340 | 1400 | 530 | ∅250×2 | 1″ | 150 | 165 | 190 | 9″ | 1 | 1½” | 900×342 |
| HMK-H-3.0-AH-SL | 1020 | 1200 | 1340 | 1340 | 1400 | 550 | ∅315×2 | 1″ | 168 | 198 | 238 | 10″ | 1 | 1½” | 900×382 |
| HMK-H-4.0-AH-SL | 1350 | 1530 | 1340 | 1340 | 1400 | 550 | ∅250×3 | 1″ | 225 | 268 | 318 | 10″ | 1 | 1½” | 1230×382 |
| HMK-H-4.5-AH-SL | 1490 | 1670 | 1340 | 1340 | 1400 | 550 | ∅315×3 | 1″ | 275 | 315 | 368 | 10″ | 1 | 1½” | 1370×382 |
| HMK-H-5.0-AH-SL | 1620 | 1800 | 1340 | 1340 | 1400 | 550 | ∅315×3 | 1″ | 325 | 365 | 415 | 10″ | 1 | 1½” | 1500×382 |
| HMK-H-5.5-AH-SL | 1510 | 1690 | 1440 | 1440 | 1500 | 660 | ∅400×2 | 1″ | 350 | 398 | 462 | 12″ | 1 | 1½” | 1390×492 |
| HMK-H-7.5-AH-SL | 1710 | 1890 | 1440 | 1440 | 1500 | 710 | ∅400×3 | 1″ | 408 | 465 | 518 | 12″ | 1 | 1½” | 1590×542 |
| HMK-H-9.0-AH-SL | 1800 | 1980 | 1440 | 1440 | 1500 | 820 | ∅400×3 | 1″ | 458 | 518 | 585 | 15″ | 1 | 2″ | 1680×652 |
| HMK-H-10-AH-SL | 1780 | 1960 | 1440 | 1440 | 1500 | 860 | ∅500×2 | 1″ | 475 | 532 | 605 | 15″ | 1 | 2″ | 1660×692 |
| HMK-H-12-AH-SL | 1750 | 1930 | 1600 | 1600 | 1660 | 1010 | ∅500×2 | 1″ | 538 | 595 | 678 | 18″ | 1 | 2″ | 1630×842 |
| HMK-H-15-AH-SL | 2140 | 2320 | 1600 | 1600 | 1660 | 1050 | ∅500×3 | 1″ | 625 | 683 | 765 | 18″ | 1 | 2½” | 2020×882 |
*Simple structure&small volume
*Convenient&flexible to install
*Easy to use
*Strictly quality inspection before use
*The sealing performance up to standard
*The basic materials and finished products are standard
*The products also customized according to requirements
*Same as natural wind
*Low noise design improve efficiency
*Save time&effort
Product Details
*Seamless purple copper pipe
*High purity aluminum foil
*Superior performance
*High jet performance ball shape air outlet
*Air supply without air pipe
*Air supply angle is adjustable
*Similar with natural wind
*Low-noise&high efficiency
*Through precision leveling
*Low vibration&superior performance
*Easy to draw out
*Suit to compact space maintenance
*Easy to clean
*Small air leakage rate
*Rust-resistant&corrosion resistant
*Beautiful&durable
